DYE Laser safety eyewear ONTOR Filter: 0390

Application: Excimer (193 nm), UV (248 nm), Nd:YAG 4x (266 nm), Nd:YAG 3x (355 nm), Dye (585 nm), Diode (650 nm)

VLT (Visible light transmission): 11 %

Filter color: blue

Filter material: polymer

Filter thickness: 2.0 mm

Frame color: black/white

Spectacleframe ONTOR BLACK/WHITE:

sportive goggles

very large field of vision

individual adjustment of temple length and angle

perfect wearing comfort by rubberized face foam

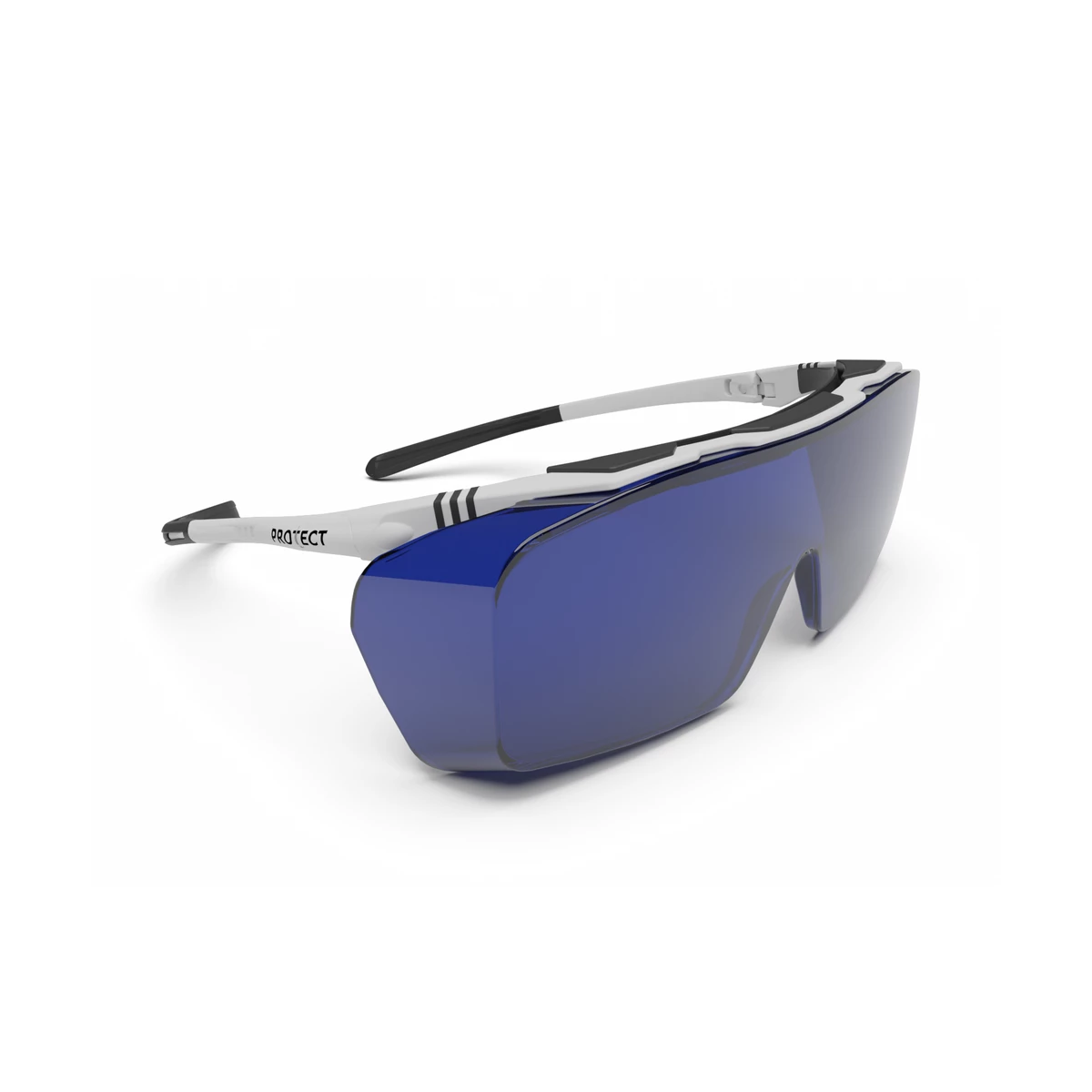

The laser safety goggles ONTOR are lightweight, versatile laser safety goggles made of a plastic frame, which are excellently suited as over-glasses for spectacle wearers. The frame offers a very large field of vision and wide side coverage, with excellent wearing comfort due to flexible temples adjustable in length and inclination, and a special soft-rubber padding in the forehead area.

The 0390 laser safety filter is particularly suitable as laser protection for Dye lasers (585 nm) and Diode lasers (650 nm). However, the laser safety filter also covers other wavelength ranges. The laser safety filter is made of a blue-coloured polycarbonate and has a daylight transmission of more than 11 % at low thickness. The laser safety filter is CE certified according to DIN EN 207.

Wavelengths Protection levels

180-315 D LB10 + IR LB4 + M LB6Y (OD10+)

>315-375 D LB6 + IR LB8 + M LB7Y (OD9+)

>375-380 D LB6 + IR LB8 + M LB7Y (OD8+)

>380-385 DIRM LB6 (OD6+)

>385-390 DIRM LB4 (OD4+)

>390-395 DIRM LB2 (OD2+)

>395-400 DIRM LB1 (OD1+)

530-565 DIRM LB1 (OD1+)

>565-571 DIRM LB2 (OD2+)

>571-575 DIRM LB3 (OD3+)

>575-580 DIRM LB5 (OD5+)

>580-589 D LB6 + IR LB8 + M LB7Y (OD8+)

>589-593 DIRM LB6 (OD6+)

>593-595 DIRM LB5 (OD5+)

>595-600 DIRM LB3 (OD3+)

>600-620 DIRM LB2 (OD2+)

>620-625 DIRM LB4 (OD4+)

>625-630 DIRM LB5 (OD5+)

>630-635 DIRM LB6 (OD6+)

>635-640 D LB6 + IR LB8 + M LB7Y (OD8+)

>640-655 D LB6 + IR LB8 + M LB7Y (OD9+)

>655-660 D LB6 + IR LB8 + M LB7Y (OD8+)

>660-665 DIRM LB6 (OD6+)

>665-670 DIRM LB3 (OD3+)

>670-674 DIRM LB2 (OD2+)

>674-680 DIRM LB1 (OD1+)

PF CE
