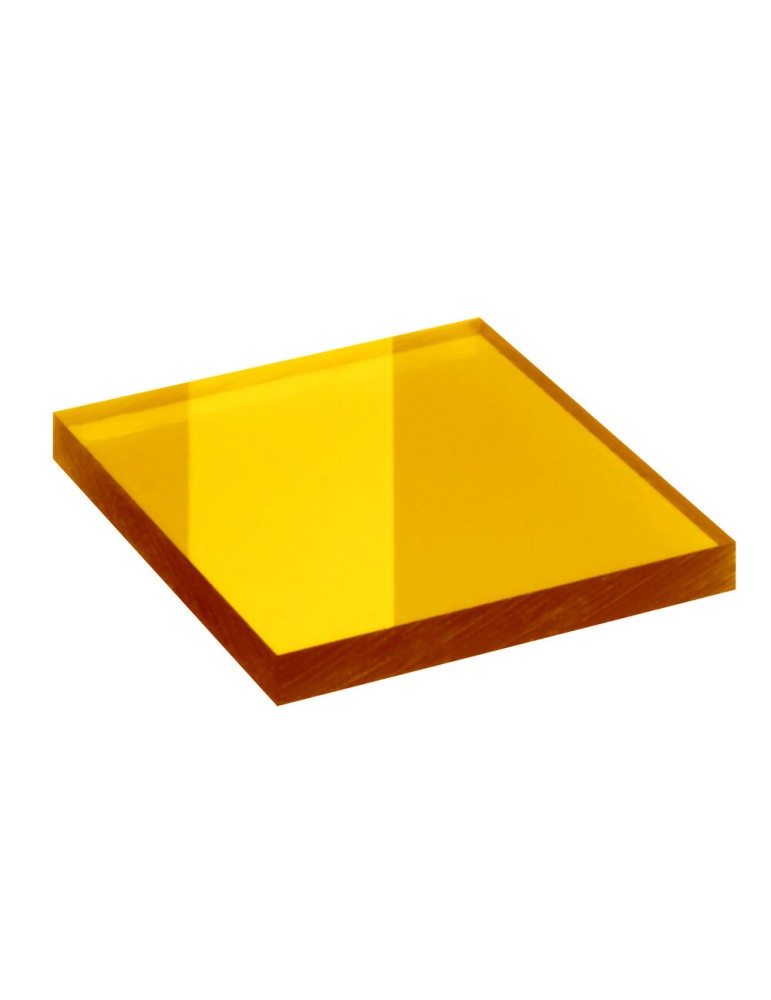

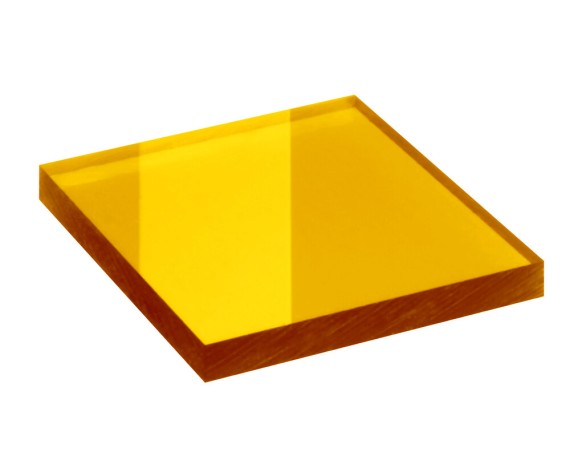

450nm laser diode protection window, filter - 0446, thickness 3 mm

Laser protection windows allow your employees to safely observe laser system processes. Whether you want to integrate laser protection windows into machine enclosures or mobile walls, we offer the right, tested protection for your laser system, laser equipment, and laser application. Depending on the desired level of protection or window size, you can choose between glass or plastic windows. In addition to a variety of standard sizes, custom cuts are also possible thanks to our in-house production.

The 0446 laser protection filter is particularly suitable for use with powerful diode (450nm) and Nd:YAG x3 (355nm) lasers. However, other lasers are also covered by the filter. The laser safety filter is made of a special red plastic and has a daylight transmission of approximately 65% at low thickness. The laser safety filter is qualified according to EN 12254.

Dimensions 100 x 200 mm

also available in the standard size 210 x 297 mm and maximum 610 x 915 mm

Wavelengths Protection levels

180-315 D AB7 + IR AB2 (OD9+)
>315-356 D AB5 (OD9+)
>356-361 D AB5 (OD8+)
>361-388 D AB5 (OD6+)
>388-469 D AB5 (OD8+)
>469-478 D AB4 (OD4+)
>478-481 D AB3 (OD3+)
>482-485 D AB2 (OD2+)
>485-498 D AB1 (OD1+)
PF CE
