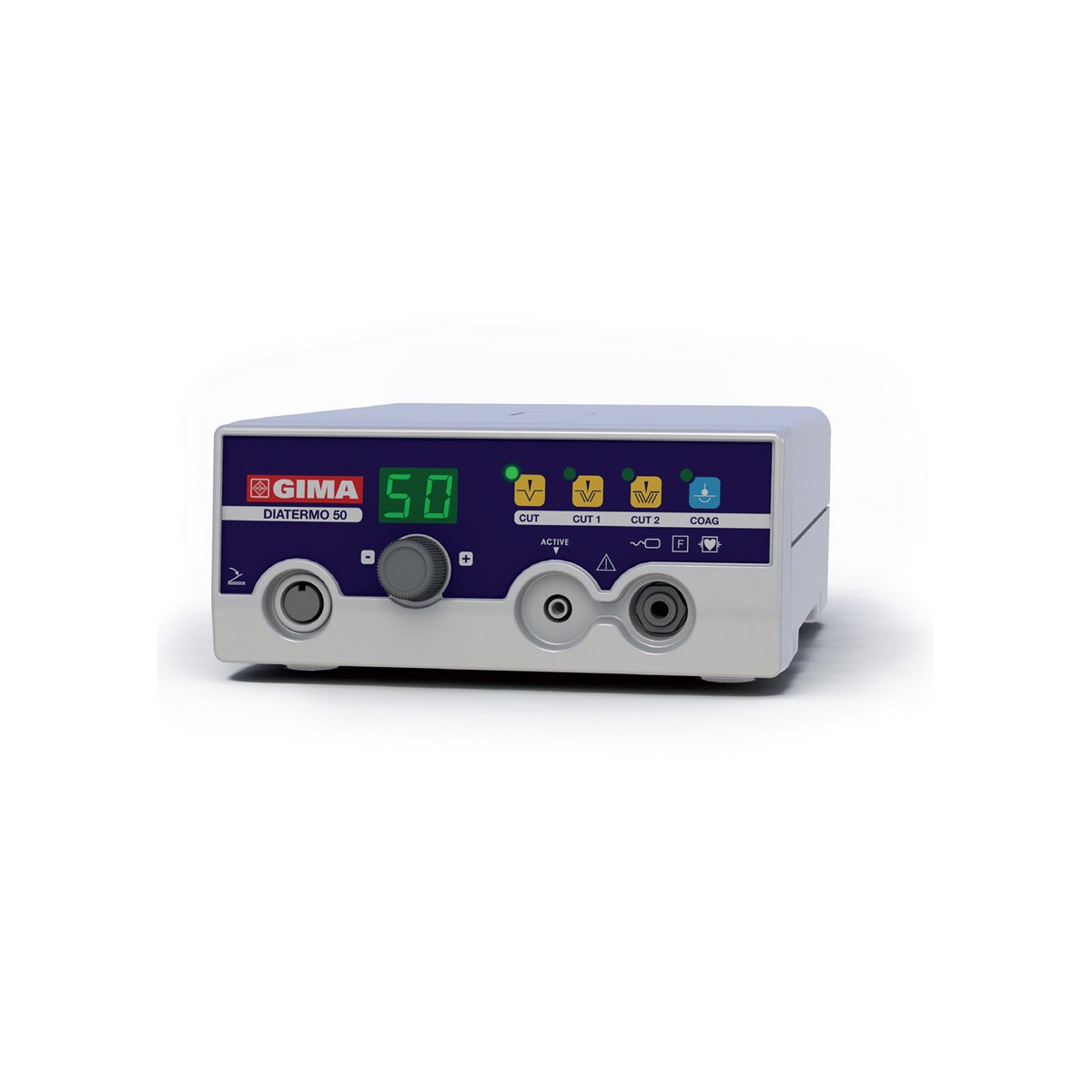

Electrosurgical unit DIATERMO 50 - monopolar 50 Watt

DIATERMO 50 - monopolar - 50 Watt

Electronic radiofrequency electrosurgical unit suitable for minor monopolar surgery.

The DIATERMO 50 allows you to perform pure cutting, coagulated cutting (CUT1 - CUT2) and coagulation.

Microcontroller monitoring of operating functions and digital readout of power output ensure absolute reliability of working conditions.

For highly professional surgery thanks to the ergonomic and safety solutions adopted and the stability of performance.

Made in Italy.

Technical features

• Max CUT power: 50 W - 400 Ohm

• Max CUT/COAG1 power: 45 W - 400 Ohm

• Max CUT/COAG2 power: 40 W - 400 Ohm

• Max COAG power: 40 W - 400 Ohm

• Working frequency 600 kHz

• Neutral electrode: F

• Selectable power supply: 115 - 230 Vac

• Mains frequency: 50 - 60 Hz

• Max power consumption: 200 VA

• Dimensions W x H x D mm: 190 x 85 x 239

• Weight 2.5 kg

• Controls: Plate/patient circuit control, control of the power emitted, self-diagnosis

• Safety: EN60601-1, EN60601-1-2, EN60601-2-2

• Electrical classification: I CF

• MDD 93/42/EC Class: II b

Standard equipment

• Disposable handpiece without buttons

• Standard waterproof pedal (30577)

• Flat plate with cable 30564

• Kit of 6 autoclavable electrodes, Ø 2.4 mm, length 5 cm (30501/2/4/7/9/10)

• 2 m power cable - Schuko plug

• User manual: GB, IT, available on request in FR, ES
