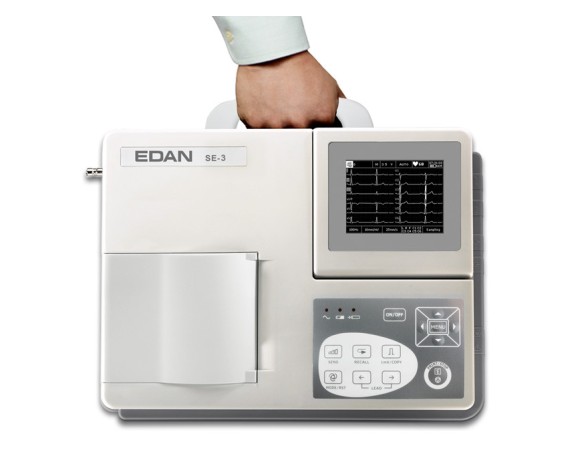

EDAN SE-3 ECG with 3-channel color display with interpretation

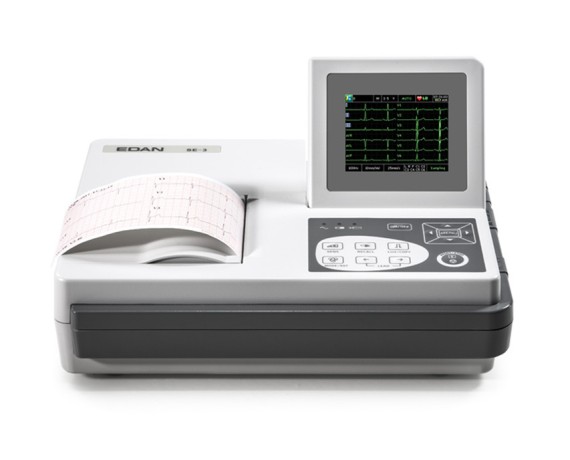

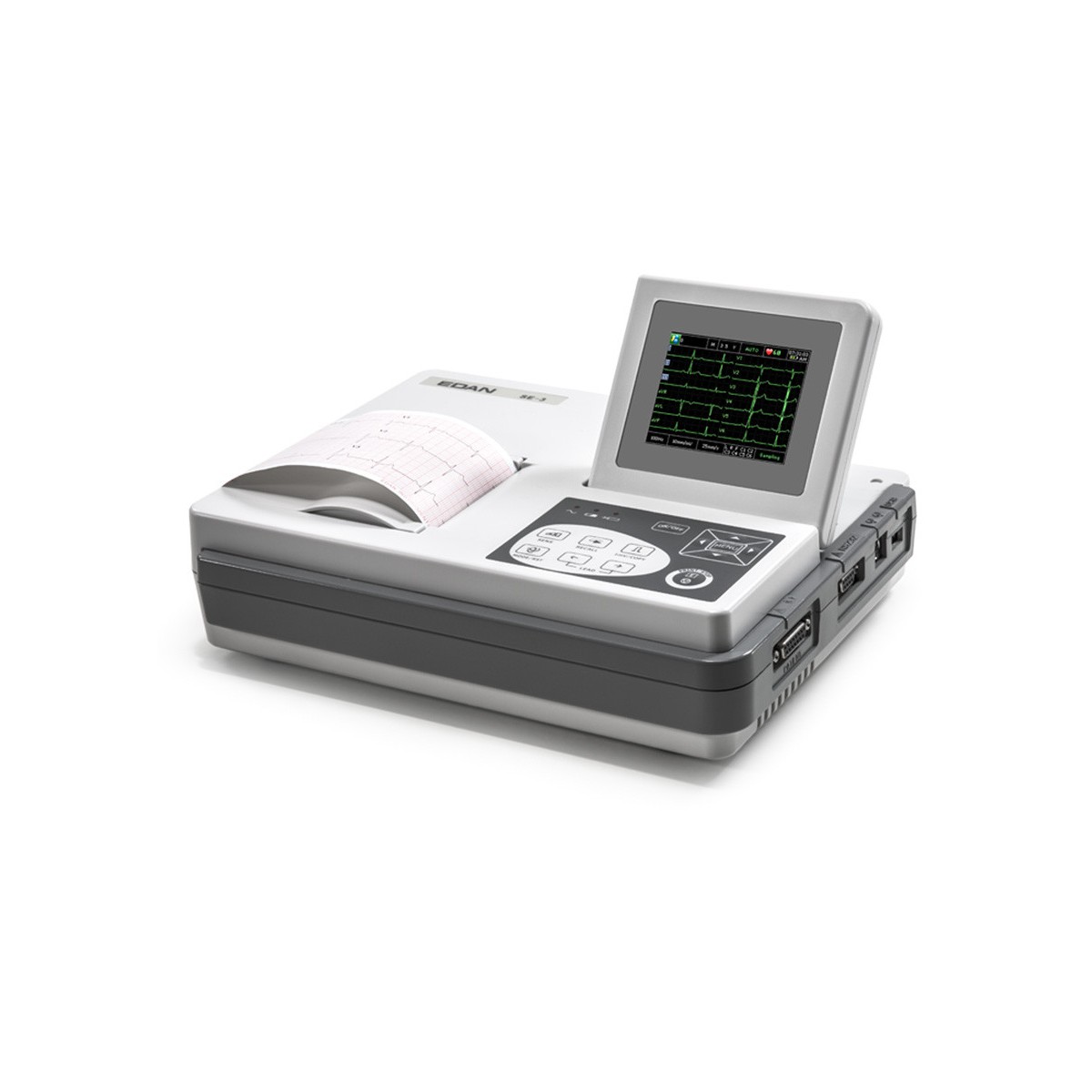

EDAN SE-3 portable electrocardiograph with color display, 3 channels and waveform interpretation .

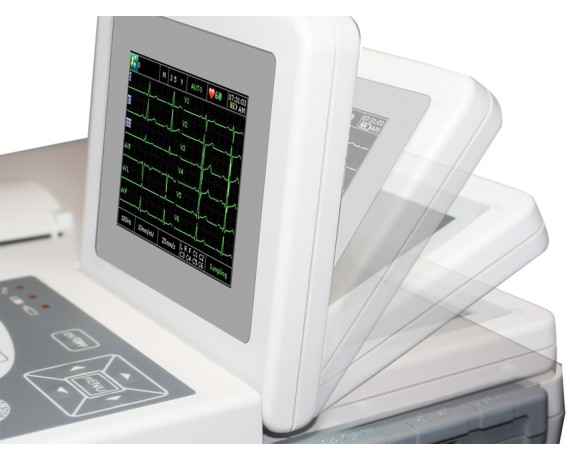

Tiltable LCD screen, clear waveforms, built-in high resolution thermal printer. Internal rechargeable lithium battery, AC/DC power supply. Automatic baseline adjustment with Auto/Manual operation. Detached electrode detection and alarm.

The 3-channel color SE-3 model also features:

- interpretation analyzed with CSE/AHA/MIT database

- 12-lead simultaneous acquisition

- automatic measurement and analysis of ECG parameters

- Automatic/Manual/Rhythm working mode

- barcode scanning to facilitate data entry

- PC LAN/RS232/USB connection

- printing of the 12 leads with an external printer on plain A4 paper

ECG data viewing and management software for PC

- compatible with Windows XP, 7, Vista (32 bit, 64 bit)

- multi-format reports: XML/SCP/DICOM/PDF/JPG/BMP/TIFF/PNG

- support two-way communication with ECG device

Technical features

• Leads: 12 standard leads

• Acquisition mode: 12 leads simultaneously

• Accuracy: 2.5, 5, 10, 20, mm / mV

• Input impedance: > 50 MOhm

• Filter:

- EMG 25/35/45 Hz off

- DFT 0.05/0.15/0.25/0.32/0.5/0.67 Hz

- Low pass 150/100/75 Hz

- AC on/off

• Recording Mode: Auto/Manual/Rhythm/USBPRT

• Rhythm leads: all leads

• Safety standards: IEC I / CF

• Diet:

- AC: 100V - 115V / 220V - 240V, 50/60Hz

- Rechargeable lithium-ion battery: voltage 14.8 V

- Plus 6 hours of continuous operation on battery power

• Data memory: 500 ECG

• Thermal paper: 80mm x 20m

• Print speed: 5, 6.25, 10, 12.5, 25, 50 mm/s

• Dimensions: 300 x 260 x 75 mm

• Weight: 2.5 kg without batteries

• Display: 320 x 240 pixels LCD (color)

• Selectable display language: GB, IT, FR, ES, RU, PL, CZ, RO, DE, TR, HR, UA

• Interface: Ethernet, RS232, USB

• Barcode scanner: yes

• Report format: PDF, Dicom, SCP, XML

Standard equipment

• Patient cable
• 1 roll of paper
• 1 bottle of gel
• Rechargeable battery
• Manual: GB, IT. on request: FR, ES, PT, TR, DE, RU
• 4 peripheral electrodes
• 6 precordial electrodes
