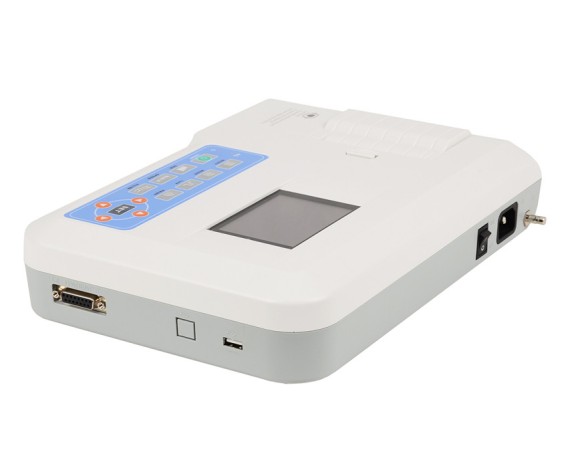

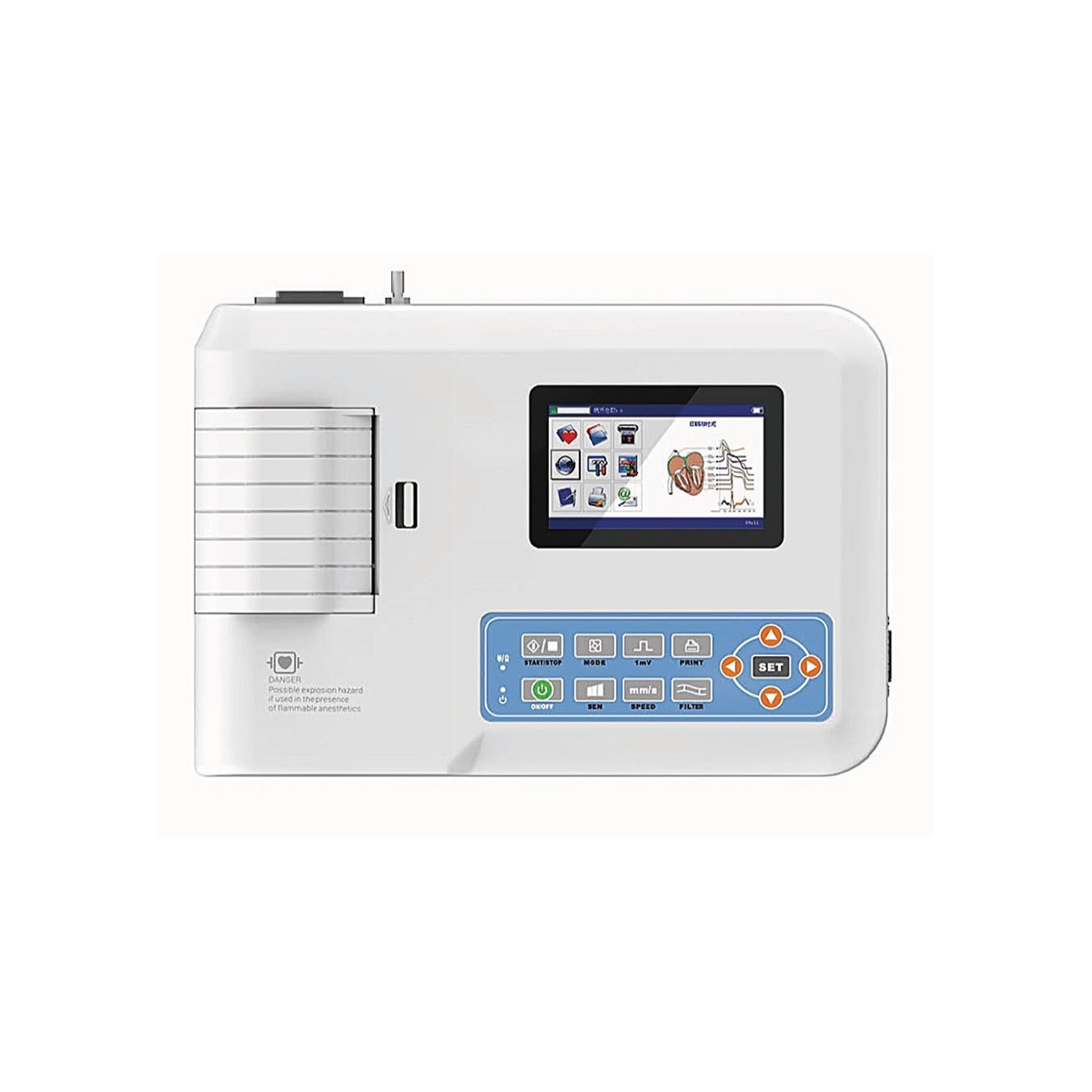

Contec 300G 3-channel ECG with color display

Contec 300G 3-channel electrocardiograph with color display.

- 12-lead simultaneous display

- Thermal printer

- AC/DC power supply

- Built-in high capacity rechargeable lithium battery

- Battery charge allows 150 ECGs to be performed in continuous recording mode

- Integrated database

- Built-in memory can hold more than 1000 tests

- Digital signal processor for filter

- Self-measurement, self-analysis, self-interpretation

- ECG Software - Sync, USB connection to PC

- Internal software: GB, FR, IT, ES, DE, TR, PL, PT, SI, BG, YU, RU, KZ, CN.

- Synchronous ECG PC software: GB, IT, FR, DE, PL, SK, TR.

- Manual: GB, IT, ES, FR.

The USB connection allows real-time transmission to the PC, data analysis and diagnosis, print management via the PC

ECG

• Safety type: Class I, type CF applied parts (defibrillation-protected applied parts)

• Derivations: 12 standard

• Input: Floating input circuit and defibrillation protection

• Patient leakage current: <10uA

• Sampling rate: 1000Hz

• A/D conversion: 12bit

• Frequency response: 0.05Hz~150Hz (-3dB, + 0.4dB)

• Time constant: >3.2s

• CMRR: >60dB, >100dB (add filter)

• Bias voltage: ±500mV

• Noise level: <15uVp-p

Filters

• Interference filter: 5Hz/35Hz (-3dB)

• AC filter: 50Hz/60Hz (-20dB)

Waveform

• Recording mode: thermal printer (32 dots/mm)

• Paper type: 80 mm × 20 m

• Sensitivity: 2.5, 5, 10, 20, 40 mm/mV

• Printing speed:

- Automatic recording: 25mm/s, 50mm/s

- Rhythm recording: 25 mm/s, 50 mm/s

- Manual recording: 5, 6.25, 10, 12.5, 25, 50 mm/s

Power supply and dimensions

• AC 110-220V, 50/60Hz
• DC lithium battery 7.4V, 3500 mAh
• Dimensions: 315 x 215 x 77 mm
• Weight: 1.6 kg

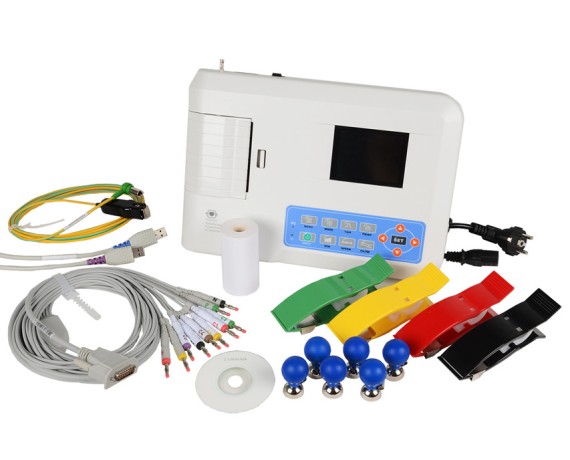

Standard equipment

• ECG cable
• 1 set of peripheral clamp electrodes
• 1 set of chest electrodes
• Grounding cable
• Power cable
• Roll of paper
• USB connection and PC software
