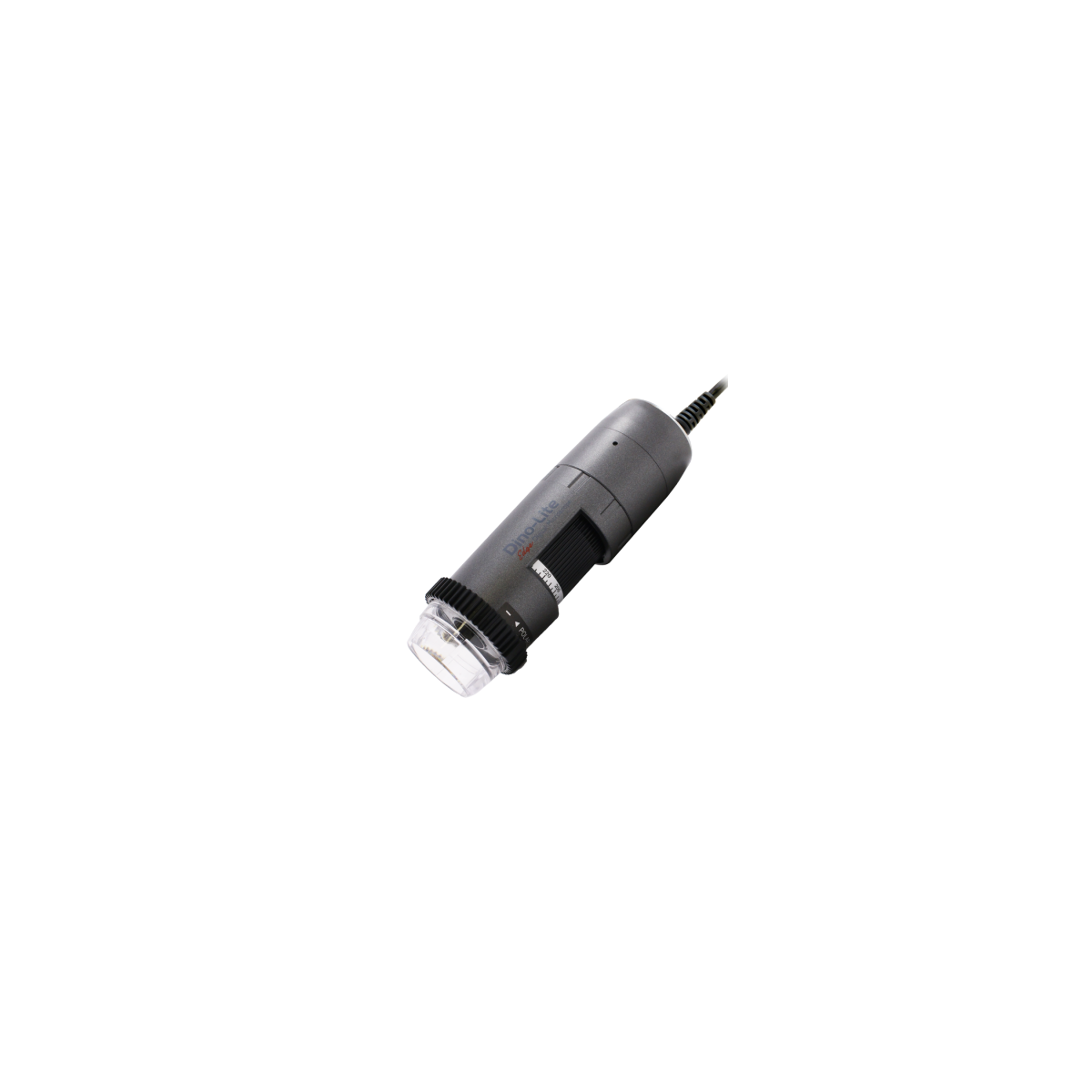

Dino-Lite PodoScope - Podoscopio digitale USB 1,3 MP 10-50x
The Dino-Lite PodoScope MEDL4FW is a professional USB digital podoscope with a 1.3 MP sensor, 10-50x magnification, a built-in polarizer, and 8 white LEDs. Ideal for documenting foot skin in photos and videos and supporting podiatry follow-up.
100% secure payment methods
Cards - PayPal - Bank Transfer - ApplePay
Are you a Doctor or a Professional?
Sign in here to obtain reserved price list
Fast shipping throughout Europe
We use only premium couriers

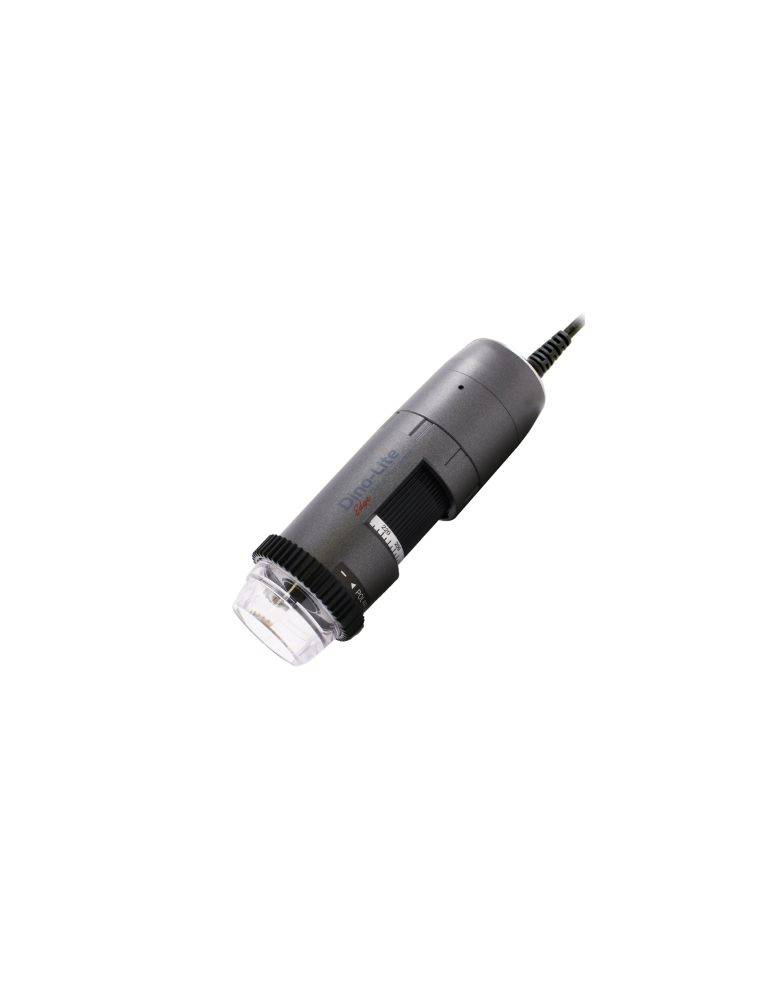

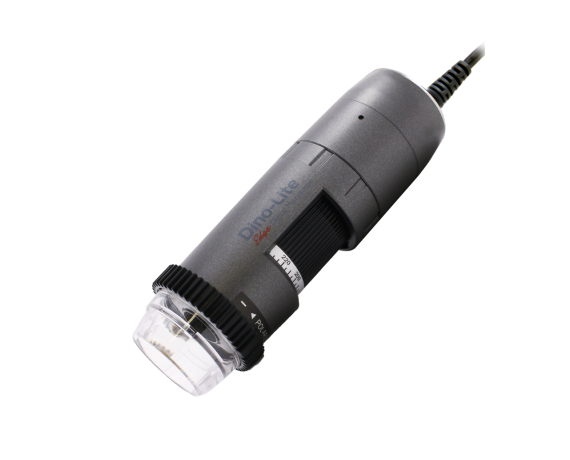

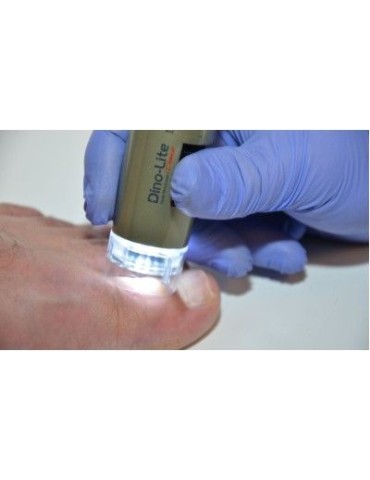

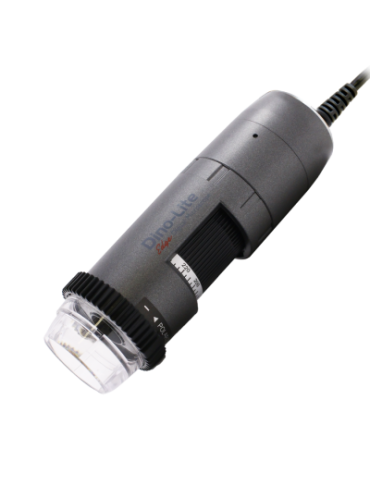

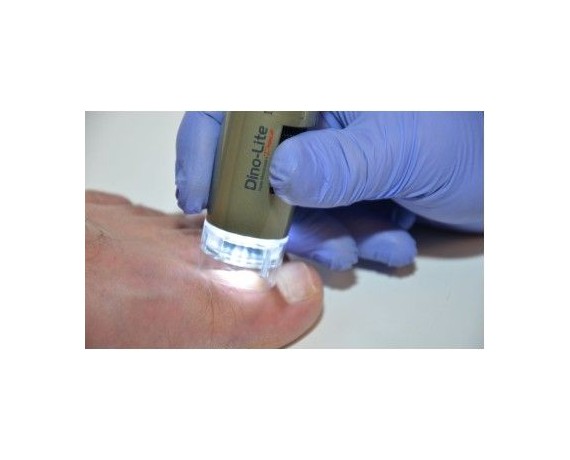

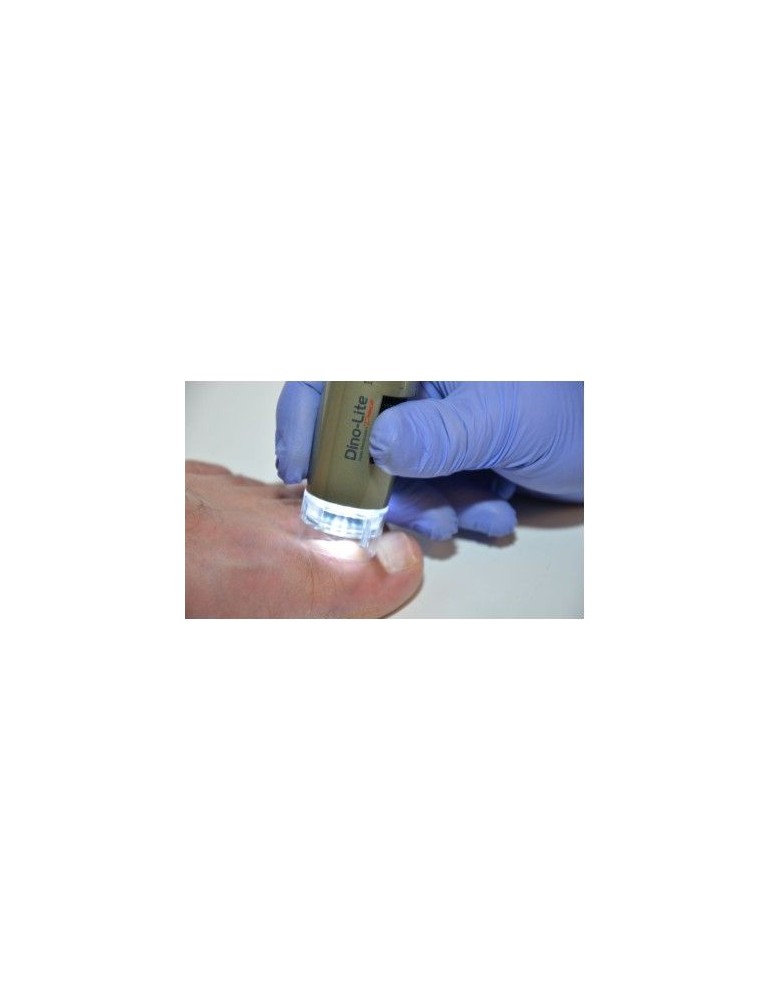

The Dino-Lite PodoScope MEDL4FW is a professional digital podoscope designed to capture detailed images and videos of the foot skin and areas of podiatric interest.

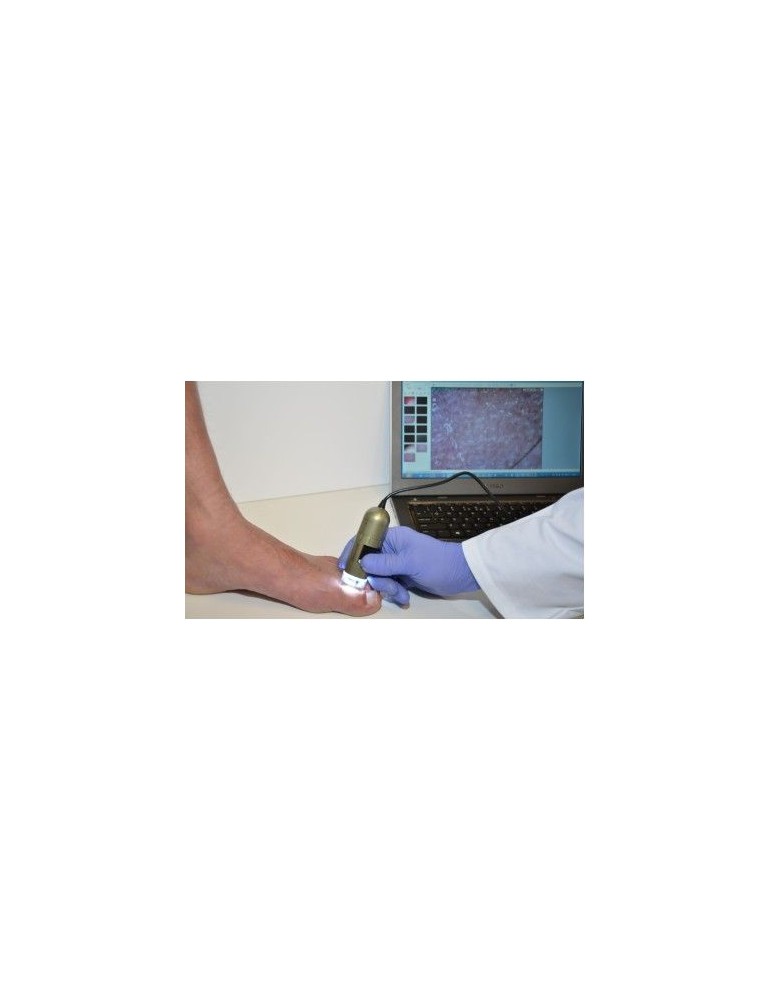

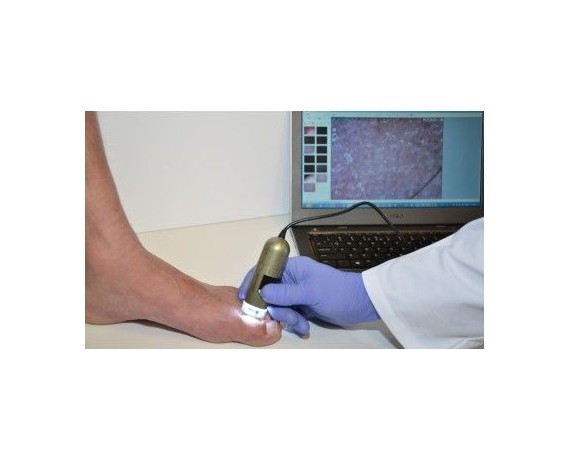

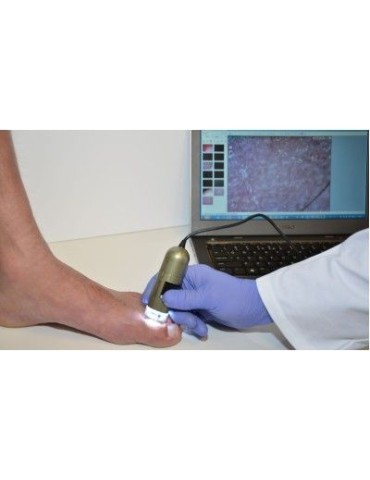

The device allows the podiatrist to view images in real time on a computer, laptop or Windows tablet and archive them in the patient's record, facilitating documentation, comparison and follow-up .
The 1.3 Megapixel CMOS sensor offers a maximum resolution of 1280 x 1024 pixels, while the adjustable 10-50x magnification allows you to quickly switch from a wider view to a more detailed observation of the skin surface.
Integrated lighting and polarization
The PodoScope integrates 8 high-brightness white LEDs , eliminating the need for an external light source. The built-in linear polarizer helps reduce glare and skin glare, improving the quality of captured images.
Power is supplied directly via USB 2.0 , so the device is always ready for use and does not require batteries.
Main features
- Resolution: 1.3 MP - 1280 x 1024
- Magnification: 10-50x
- 8 integrated white LEDs
- Anti-reflection linear polarizer
- LEDs that can be activated/deactivated
- IR cut filter >650 nm
- Glass lenses with anti-reflective treatment
- Maximum frame rate: 30 fps
- Microtouch sensor
- Zoom lock
- Direct power supply via USB
- Interchangeable caps
Professional applications
The Dino-Lite PodoScope MEDL4FW is indicated for podiatry practices and professionals who wish to simply and repeatably document the condition of the foot skin, archive clinical images and show the patient the observed area directly on the screen.
Software compatibility
- DinoCapture 2.0 for Windows
- DinoXcope for macOS
- Compatible with Windows 7, 8, 10 and 11
- Compatible with macOS 10.9 or later
- Imaging standards: DirectShow and UVC
Technical specifications
- Product Code: MEDL4FW
- Sensor: CMOS
- Resolution: 1.3 MP
- Magnification: 10-50x
- Lighting: 8 white LEDs
- Polarizer: yes, linear
- Interface: USB 2.0
- Body material: composite/plastic
- Dimensions: 10.5 x 3.2 cm
- Weight: 105 g
- Cable length: 1.8 m
Package Contents
- Dino-Lite PodoScope MEDL4FW
- Carrying case
- Software
- User manual
- N3C-C, N3C-D, N3C-E, N3C-L, N3C-S and N3C-D2 Caps
The Dino-Lite PodoScope MEDL4FW is classified as a Class I Medical Device according to the European Regulation MDR 2017/745.
MEDL4FW
Data sheet
- CE Certification:
- Yes
