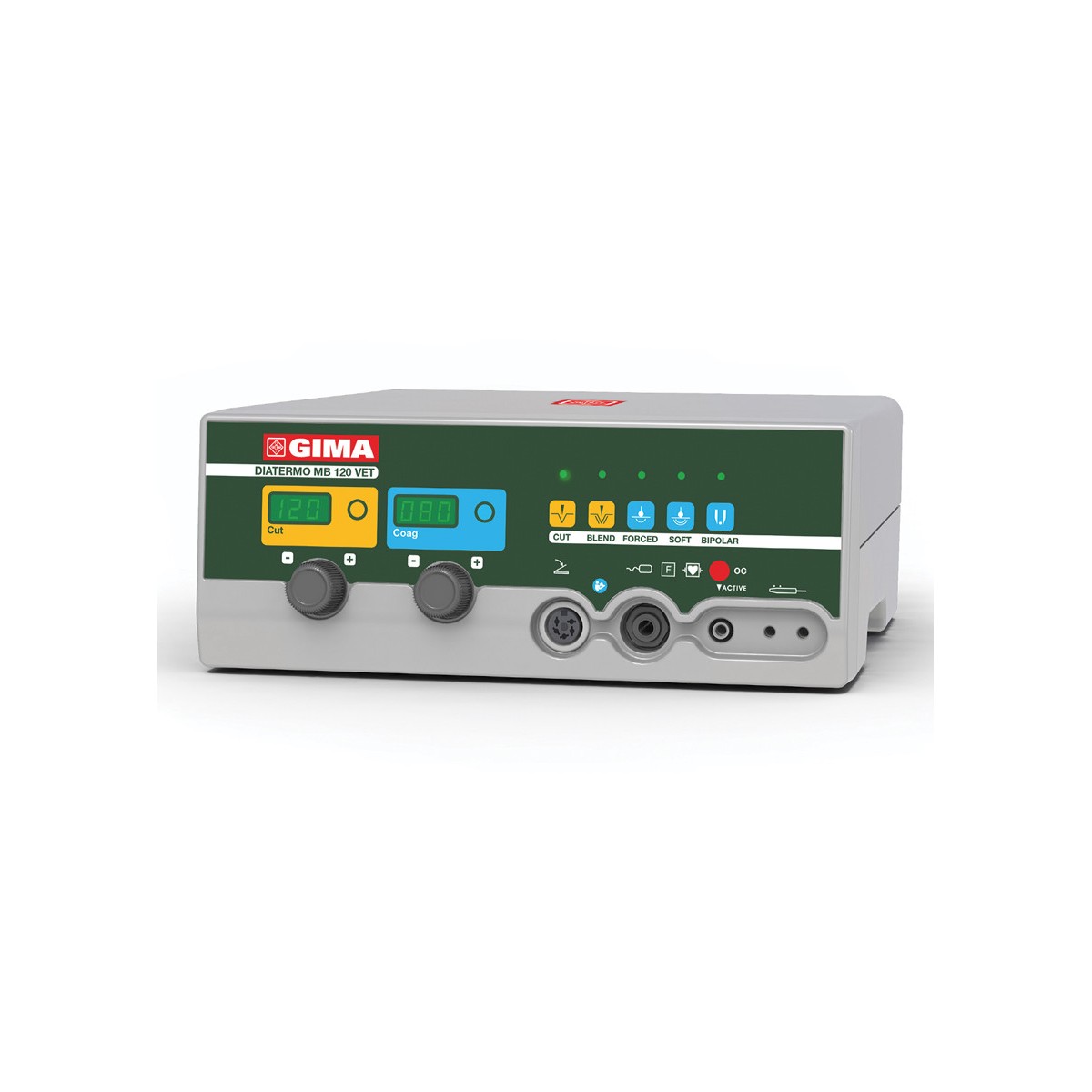

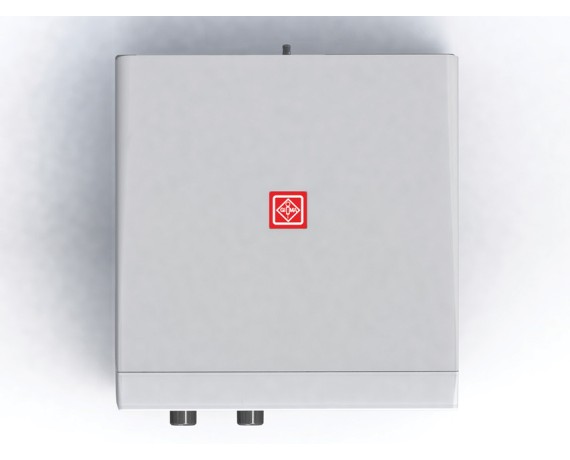

Veterinary diathermocoagulator MB 120D VET 120W mono and bipolar

Diathermocoagulator / electrosurgical unit for veterinary medicine model MB 120D VET 120W mono and bipolar.

Diathermo MB-D is a high frequency electronic electrosurgical unit suitable for small and medium surgery in the veterinary field.

Through the selection of functions it allows you to carry out pure CUT cutting, BLEND coagulated cutting, FORCED COAG superficial coagulation, SOFT COAG in-depth coagulation in the absence of carbonization and, with the appropriate adapter, BIPOLAR bipolar coagulation.

The digital reading of the power supplied and the microcontroller surveillance of the operational functions help to create the best conditions for intervention.

The electrosurgical unit is equipped with a control system for the correct functioning of the neutral electrode.

Possibility of switching functions and controlling power delivery from the electrode holder handpiece, allowing surgical interventions to be performed without diverting attention from the operating field.

Characteristics:

• minimally invasive surgery
• possibility of using bipolar forceps
• possibility of using bipartite neutral electrodes
• storage of the last settings used
• activation of power with pedal and/or handpiece
• digital power regulation and indication
• adjustment of the intensity of the sound emission

Other technical features

• Max CUT cutting power 120 W-250 Ohm
• Max cut-coagulated power BLEND 90 W-200 Ohm
• Max coagulation power FORCED COAG 80 W-150 Ohm
• Max coagulation power SOFT COAG 60 W-100 Ohm
• Maximum bipolar power BIPOLAR 40 W-100 Ohm
• Working frequency 600 kHz
• Neutral electrode F
• Selectable power supply 115 - 230 Vac
• Mains frequency 50 - 60 Hz
• Maximum absorbed power 300 VA
• Dimensions WxHxD mm 254x104x288
• Weight 5kg

Controls: Plate/veterinary patient circuit control, control of the power emitted, self-diagnosis

Safety: EN60601-1, EN60601-1-2, EN60601-2-2, Electrical class: I CF, DDM 93/42/CE Class: II b

Standard equipment

Disposable MB handpiece with 2 buttons

MB watertight pedal 30577

MB flat plate with cable 30564

Kit of 10 autoclavable electrodes, Ø 2.4 mm

Power cable: 2 m

User manual: GB, IT, available on request in FR, ES, PL
