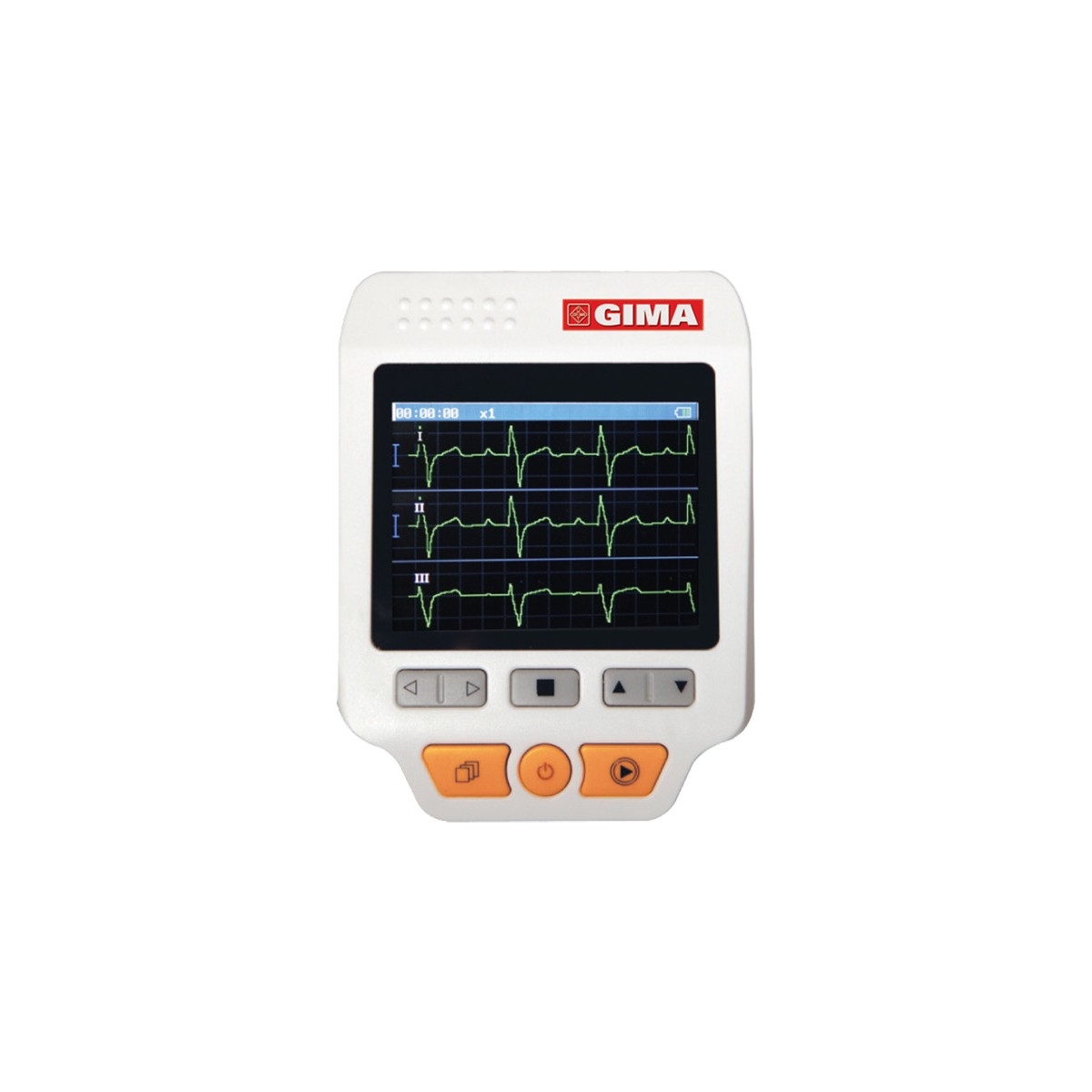

Cardio C 3-channel handheld ECG

Cardio C model 3-channel handheld electrocardiograph .

• Small, lightweight and easy to carry
• One button for measurements
• Clear ECG waveform with interpretation of results on 3.5'' TFT color display
• Up to 19 types of analyses and reports
• Very large built-in memory: 24 hours of memory for 1-channel traces and 8 hours of memory for 3-channel traces
• Quick measurements: with integrated electrode, on the palm of the hand, the torso or the leg or via external leads (works with optional peripheral and chest electrodes)
• Data management to review or delete recordings locally or download them to PC

Supplied with ECG reading software, USB cable, transformer, 4 PIN ECG cable, 10 disposable electrodes, manual (GB, FR, IT, ES, DE, PT).

ECG measurement methods (direct or with leads):

• Directly on the leg
• Directly on the torso
• Directly on the palm or wrist
• With leads, clamp electrodes 33364
• With leads, torso electrodes 33327

Technical features

• Pulse measurement range: 30 - 240 bpm
• Pulse accuracy: ± 2 bpm or ± 2% whichever is higher
• ECG bandwidth: 0.5Hz - 40Hz
• Internal noise level: = 30 µVp-p
• Display scale: 5.0 mm/mV ± 10%
• Common Mode Rejection Ratio (CMRR): = 60 dB
• Waveform scanning speed: 20mm/s ± 10%
• Input current loop: = 0.1 µA
• Input impedance: = 5 MOhm
• Power supply: 4 AA alkaline batteries
• Power supply voltage: 4.4 6 ~ VDC
• Average operating current Max: = 160 mA
• Auto-off: adjustable from 1 to 5 min
• Low battery indication: V DC ± 0.2 VDC
• 3.5'' True Color TFT Display
• Compact size: 13 x 9.5 x 3.2 cm
• Internal memory 32 MB
