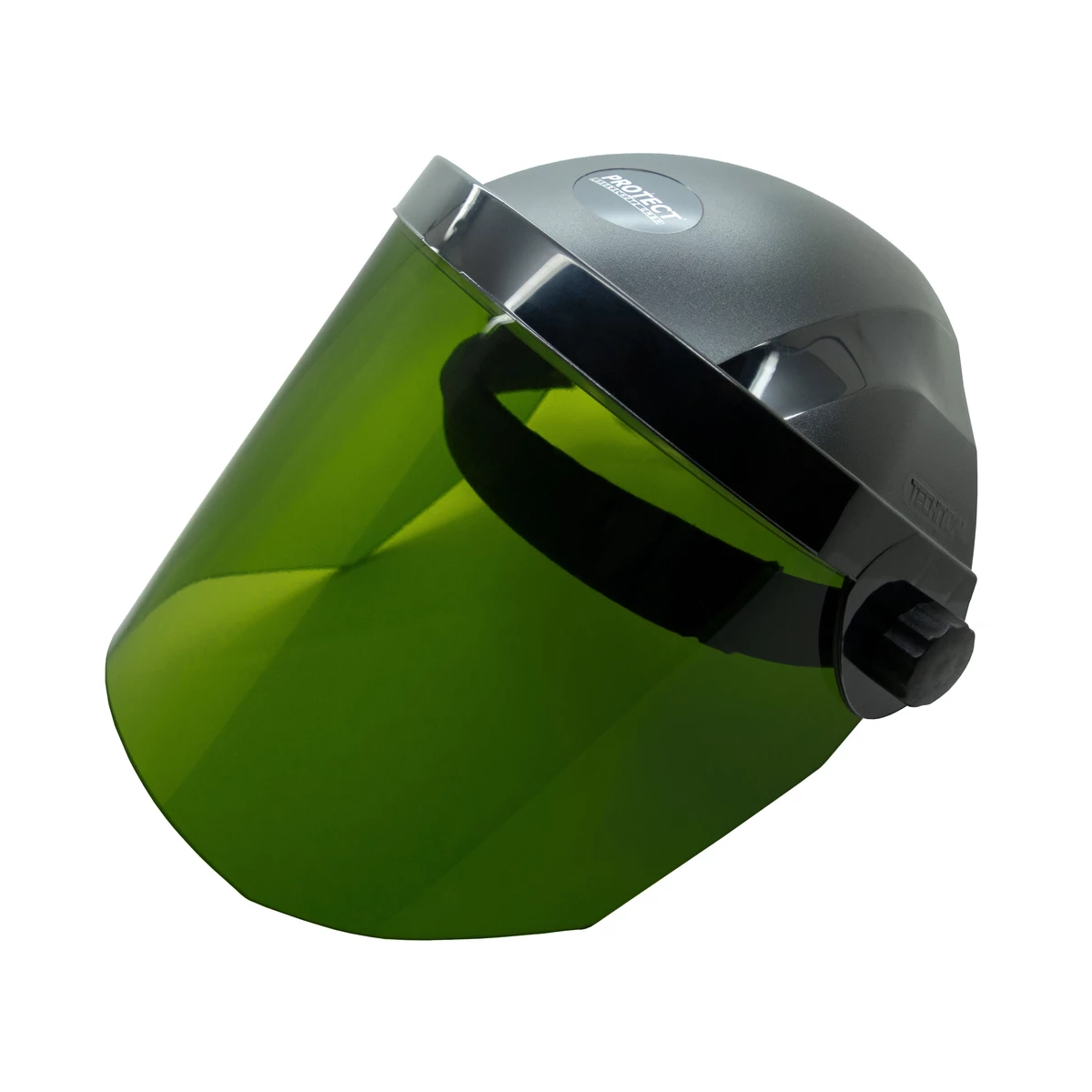

Laser high protection Face-Shield with filter 0242 Diode - Nd:Yag - Fiber

Laser high protection Face-Shield to protect the operators from Diode, Nd:YAG and Faser type laser radiations.

Certified laser safety visor according to EN 207 suitable for Diode (940 - 980 nm), Yb:YAG/disc (1030 nm), Nd:YAG (1064 nm) and Fiber (976 - 1080 nm) lasers.

Product information

• Application: Diode (940 – 980 nm), Disc (1030 nm), Nd:YAG (1064 nm), Faser (976 – 1080 nm)
• VLT (Visible light transmission): 40 %
• Filter color: grün
• Filter material: special plastic
• Filter thickness: 3,0 mm
• Frame color: black

Product Description

• Visor made of shatterproof polycarbonate 3 mm, grün
• Steplessly adjustable face shield and size-adjustable head mount
• Perfect all-round protection due to complete coverage of the face
• High wearing comfort due to low weight
• Sweat-absorbing headband
• Visor shield edge with rubber protection
• Visor also available with a chin guard

Wavelengths and Protection levels

740-755 DIR LB1 + M LB1Y (OD1+)

>755-785 DIR LB2 + M LB2Y (OD2+)

>785-805 DIR LB3 + M LB3Y (OD3+)

>805-830 DIR LB4 + M LB4Y (OD4+)

>830-860 DIR LB5 + M LB5Y (OD5+)

>860-880 DIR LB6 + M LB5Y (OD6+)

>880-900 D LB6 + IR LB7 + M LB5Y (OD7+)

>900-1070 D LB6 + IR LB8 + M LB8Y (OD8+)

>1070-1075 DIR LB6 + M LB6Y (OD6+)

>1075-1080 DIR LB5 + M LB5Y (OD5+)

>1080-1090 DIR LB4 + M LB4Y (OD4+)

>1090-1100 DIR LB3 + M LB3Y (OD3+)

PF CE
