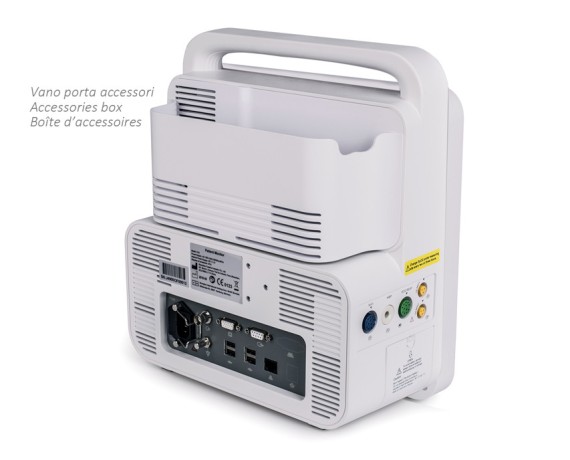

MULTIPARAMETRIC MONITOR K12 TOUCHSCREEN 12" - ECG 5 der.

Multifunctional monitor to monitor the vital physiological signs of adult, pediatric and neonatal patients.

With real-time recording and display functions of parameters such as ECG, heart rate (HR), non-invasive blood pressure (NIBP), oxygen saturation (SpO2), respiration (RESP), temperature (TEMP), it enables analysis complete assessment of the patient's physiological conditions.

- ergonomic design with intuitive user interface

- USB socket for data transfer and software updating

- 9 tracks on video waveforms

- Windows style environment, easy to use

- visual and audible alarm for physiological and technical anomalies

- large memory capacity

- suitable for use with original Nellcor sensors

- protection against defibrillator discharges, resistance against interference from electrosurgical units; detection and inhibition of cardiac pacemaker impulses.

Internal software: GB, DE, FR, PT, ES, IT, PL, TR, RU.

PC software GB, IT, ES.

Compatible with Windows XP, 7, 8, 10, 11.

Technical features

ECG

Input dynamic range: ±(0.5~5 mVp)

Differential input impedance: =10 MO

Bandwidth: 0.05~150Hz (Diagnostics), 0.5~40Hz (Monitoring), 1~20Hz (Operation)

CMRR: =90 dB (Diagnostics) / =105 dB (Monitoring & Operation)

Sensitivity selection: ×1/4, ×1/2, ×1, ×2, ×4 and Auto

Scanning speed: 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s

HR measurement range: 15~350 bpm ±1% or ±2 bpm, whichever is greater

Pacemaker pulse detection and inhibition function

RESP

Measuring range: 0~120 rpm ±5% or ±2 rpm, whichever is greater

TEMP

Measuring range: 21.0~50.0°C ±0.2°C between 25~45°C

NIBP

Technique: Oscillometric method

Typical measurement time: <30 seconds (adult cuff)

NIBP measurement range: SYS: 40~275 mmHg (Adult) / 40~200 mmHg (Pediatric) / 40~135 mmHg (Neonatal)

NIBP measurement range: DIA: 10~210 mmHg (Adult) / 10~150 mmHg (Pediatric) / 10~95 mmHg (Neonatal)

NIBP measurement range: MAP: 20~230 mmHg (Adult) / 20~165 mmHg (Pediatric) / 20~110 mmHg (Neonatal)

NIBP measurement accuracy: Mean difference: ±5 mmHg

Standard deviation: 8 mmHg

Measurement mode NIBP: Manual, Auto, STAT, Multicycle

Self-measurement intervals: 1-480 min

SpO2

Technique: Dual wavelength optical method

Measurement range: 0%~100% ±2% for SpO2 range 70~100%

PR measurement range: 30~250bpm ±2bpm or ±2%, whichever is greater

Low perfusion efficiency: Up to 0.3%.

Other characteristics

Power supply: AC 100-240 V, 50/60 Hz, 60 VA

Built-in lithium battery: 11.1V/4400 mAh

Screen: 12 or 15 inch TFT screen

Alarm method: 3-level audible-visual alarm

Network: Ethernet

Safety Standard: IEC 60601-1

Standard equipment

- Adult SpO2 probe

- Adult NIBP cuff

- SpO2 extension cable

- ECG cable

- Skin temperature probe

- Power cord

- Rechargeable lithium battery

- Dust cover

- Disposable electrode

- Manual: GB, FR, IT, ES,

- PC software: GB, IT, ES
