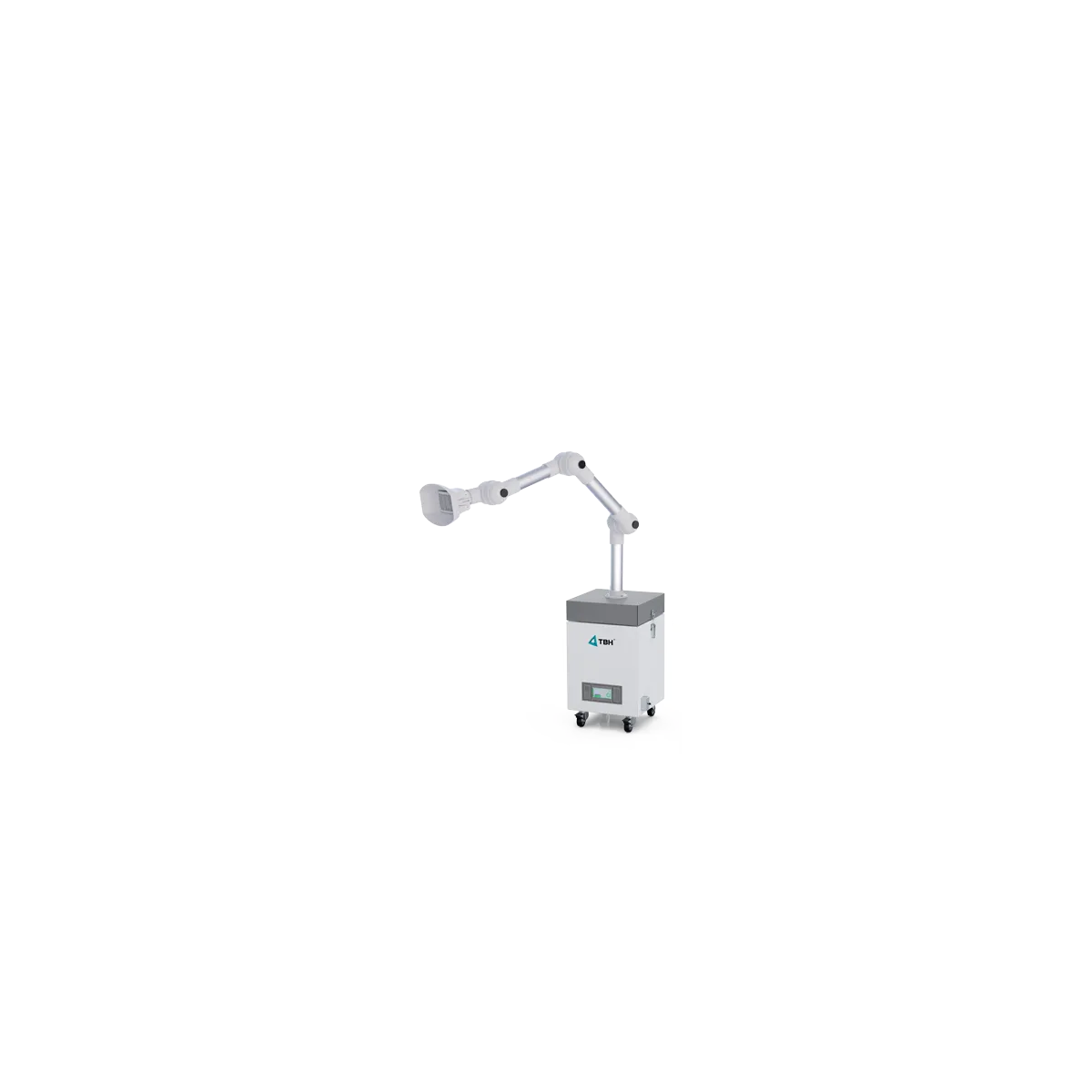

TBH Health PRO treatment fume extractor with brushless motor

Protect yourself, your staff and patients with the TBH Health PRO system for the extraction and filtering of fumes produced by medical and aesthetic treatments.

Are you in UK or outside Euro Zone?

You will not pay Italian 22% VAT

Are you a Doctor or a Professional?

Fast shipping throughout Europe

We use only premium couriers

Protect yourself, your staff and patients with the TBH Health PRO system for the extraction and filtering of fumes produced by medical and aesthetic treatments. In laser surgery, particles with a size of around 0.1μm - 2μm are generated which, being biological, can be dangerous if inhaled.

Brushless turbine motor, it is the successor to the TBH BF10.

The TBH Health Pro is the fume extractor model, with an excellent quality/price ratio, equipped with the new InLine filter and the two-stage HEPA filter.

The TBH Health Pro fume aspirator allows the removal of viral particles, bacteria, containing carbon residues, cells and microorganisms caused by tissue vaporization during electrosurgery, radiosurgery and laser surgery operations and by the aerosol generated by the breathing of patients and operators. At the same time it eliminates unpleasant odors in the working environment.

The system, extremely silent, compact, mobile and easy to use, adapts to placement even in restricted areas, allowing ideal integration of the instrument into the specialist practice.

The TBH Health PRO aspirator is characterized by a suction capacity of 200 m3/h and a separation degree of 99.95% (H13).

It is equipped with a wide range of (optional) accessories.

TBH Health PRO filter and suction systems have no applied parts according to EN 60601-1, as the devices are designed and the suction arm is positioned in such a way that it does not touch the patient during suction. In order to guarantee the greater safety required in the medical field, it is possible to carry out electrical safety checks according to EN 62353, as required by EN 60601-1.

APPLICATION AREAS

Cosmetic surgery interventions (skin removal, hair removal, alteration of the epidermis)
HF surgery
Dental Medicine
Endoscopy

CHARACTERISTICS

Simple filter change from above
Motor with brushless turbine, maintenance free
Suction arm with four optional air vents
Optional foot pedal operation
Electronic flow regulation and status visualization functions via display
Differential pressure indicator for monitoring filter saturation
Can be equipped with in-line pre-filter

Reference 90485

Data sheet

CE Certification:: Yes

Specific References

Download

TBH_Health_catalog

Download (9.98M)
