TBH Health BASIC treatment fume extractor with brush motor TBH evacuators TBH GmbH 90483

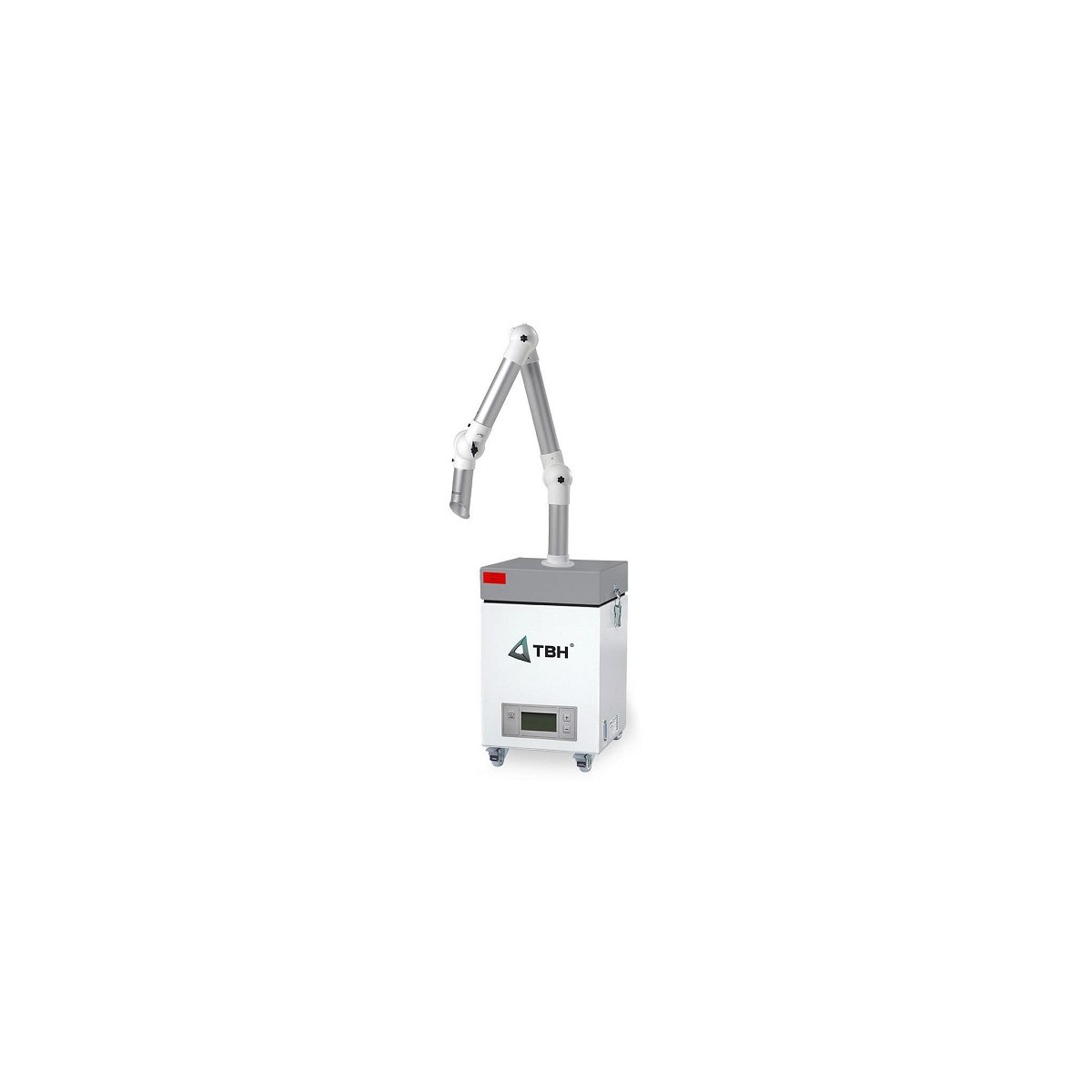

TBH Health BASIC treatment fume extractor with brush motor

Protect yourself, your staff and patients with the TBH Health BASIC system for the extraction and filtering of fumes produced by medical and aesthetic treatments.

Are you in UK or outside Euro Zone?

You will not pay Italian 22% VAT

Are you a Doctor or a Professional?

Fast shipping throughout Europe

We use only premium couriers

Protect yourself, your staff and patients with the TBH Health BASIC system for the extraction and filtering of fumes produced by medical and aesthetic treatments. In laser surgery, particles with a size of around 0.1μm - 2μm are generated which, being biological, can be dangerous if inhaled.

TBH Health Basic is the successor to the TBH BF9 with brush motor.

The TBH Health BASIC is the fume extractor model, with an excellent quality/price ratio, equipped with the new InLine filter and the two-stage HEPA filter.

The TBH Health Pro fume aspirator allows the removal of viral particles, bacteria, containing carbon residues, cells and microorganisms caused by tissue vaporization during electrosurgery, radiosurgery and laser surgery operations and by the aerosol generated by the breathing of patients and operators. At the same time it eliminates unpleasant odors in the working environment.

The system, extremely silent, compact, mobile and easy to use, adapts to placement even in restricted areas, allowing ideal integration of the instrument into the specialist practice.

The TBH Health BASIC aspirator is characterized by a suction capacity of 200 m3/h and a separation degree of 99.95% (H13).

It is equipped with a wide range of (optional) accessories.

TBH Health BASIC filter and suction systems have no applied parts according to EN 60601-1, as the devices are designed and the suction arm is positioned in such a way that it does not touch the patient during suction. In order to guarantee the greater safety required in the medical field, it is possible to carry out electrical safety checks according to EN 62353, as required by EN 60601-1.

APPLICATION AREAS

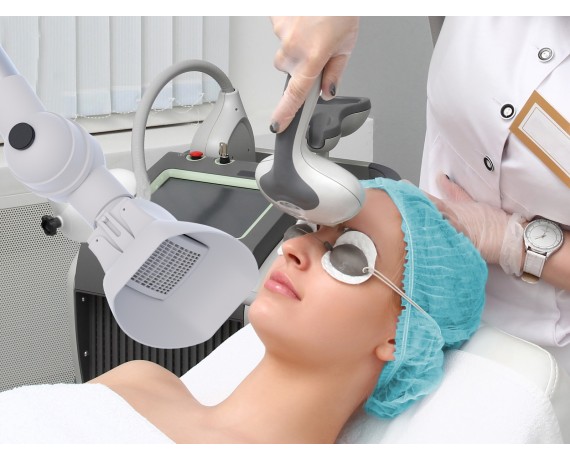

Cosmetic surgery interventions (skin removal, hair removal, alteration of the epidermis)
HF surgery
Dental Medicine
Endoscopy

CHARACTERISTICS

Simple filter change from above
Motor with turbine with brushes
Suction arm with four optional air vents
Optional foot pedal operation
Electronic flow regulation and status visualization functions via display
Differential pressure indicator for monitoring filter saturation
Can be equipped with in-line pre-filter

Reference 90483

Data sheet

CE Certification:: Yes

Specific References

Download

TBH_Health_catalog

Download (9.98M)

Smoke evacuator filter for TBH LN100 Set D and TBH BF9-BF10

€559.98
€459.00 VAT Excl.

Smoke evacuator filter for TBH. Compatible with model LN100 Set D and TBH BF9, BF10.

Extraction Tube with integrated protection grid

€193.98
€159.00 VAT Excl.

Extraction Tube with integrated protection grid to avoid extraction of foreign objects. The grid is a convex design to reduce the risk of material being suckedonto the grid surface during a procedure, blocking air flow. In addition, the protective grid prevents the extraction of foreign objects - non-intentionally or intentionally - that might block the...
