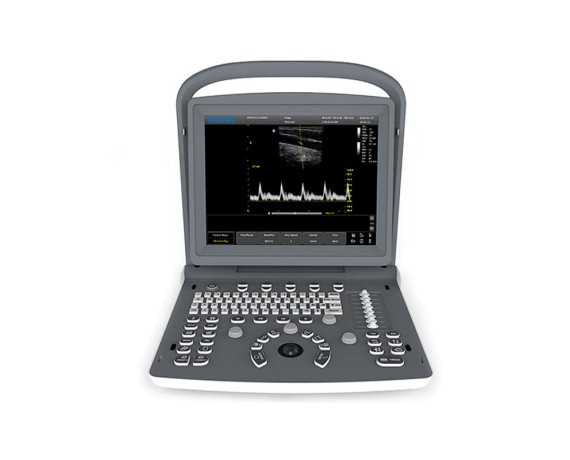

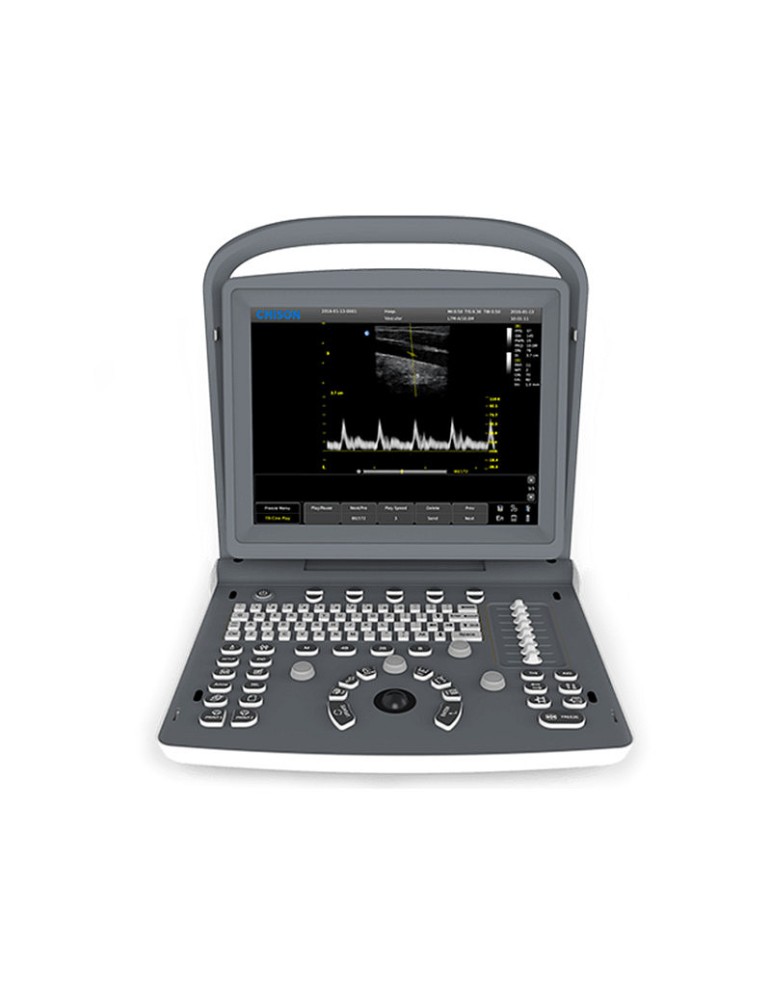

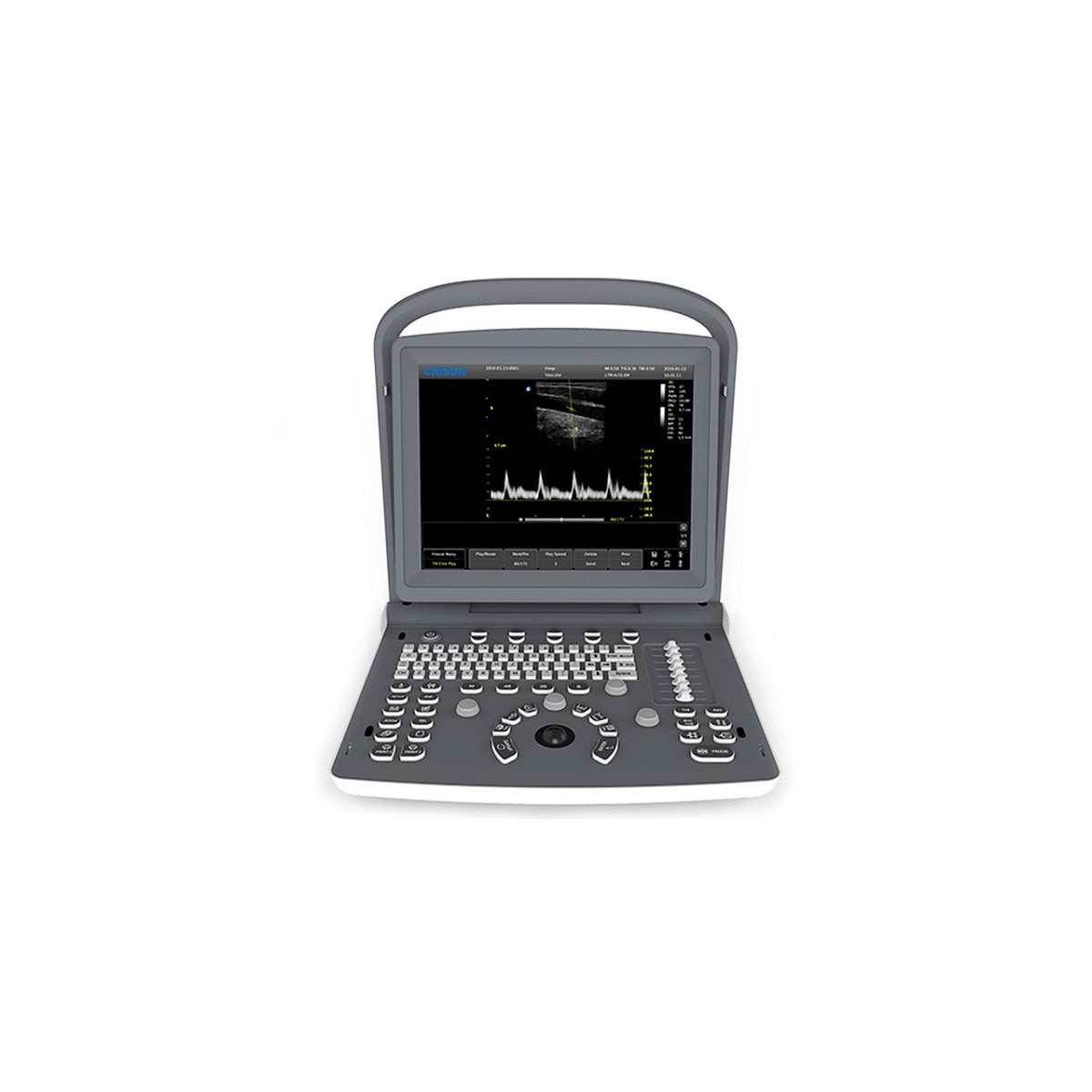

Chison ECO-2 VET Portable Veterinary Ultrasound System with 1 Probe Connector

Chison ECO-2 VET portable veterinary ultrasound system , equipped with one probe connector. Supplied without probes.

- compact and lightweight, easy to carry
- screen with next-generation LED technology; ultra-bright images allow for optimal viewing even outdoors
- Ergonomic monitor design, 30 degree rotation, adjustable
- long-lasting battery life of up to 2 hours, for outdoor use
- full screen image magnification, better viewing from a distance
- linear workflow, easy to use, 6 quick keys to finalize the diagnostic cycle

Display and image processing modes B, B/B, 4B, M, B/M

Image processing
- composite images
- trapezoidal
- intelligent image optimization I-image
- THI (Textile Image Balance)
- SRA (Focal Spot Reduction Algorithm)
- Chroma
- digital beam-former system
- AIO (Automatic Image Optimization)
- full screen view

User Interface
- foldable control panel and alphanumeric keyboard
- backlit keyboard for optimal visibility in the dark
- interactive backlighting
- identification lights indicate active keys
- 8 TGCs for easy adjustment
- knob for easy adjustment (shortcut keys)
- clear and intuitive keyboard layout, quick to memorize
- default user settings

Linear workflow, one button to:
- select the desired function with automatic settings
- optimize the image automatically (AIO)
- Create reports
- save the still image and the CINE loop
- Measure
- print from PC* (laser or ink printer) or from video printer

EASYVIEW™ Storage System
- image archive on hard disk and USB
- 3 USB ports
- various image formats: BMP, JPG, DCM, CIN, AVI
- cine review: auto, manual (auto review setting) for 2D, M images
- cine memory capacity (256 images/10s)

Technical features
Dimensions and weight: 33.5x15.5xh 35 cm; 6 kg
Display: 12" LED, high resolution 1,024x768
Power supply: AC 100-240 V - 50/60 Hz

LANGUAGES - user selectable
Software: GB, IT, FR, ES, DE, CZ, TR, CN, RU
Manual: GB, IT, FR on request

Standard equipment
12” high resolution LED screen - B/W
8G memory card
Shortcut keys
PC printer connection
3 USB ports
1 Ethernet port
1 video output port, 1 VGA output port
1 foot switch port
Full screen mode
2-hour rechargeable Li-ion battery: optional
Adapter
Standard software package
Easyview Image Archive System
THI (Textile Image Balance)
