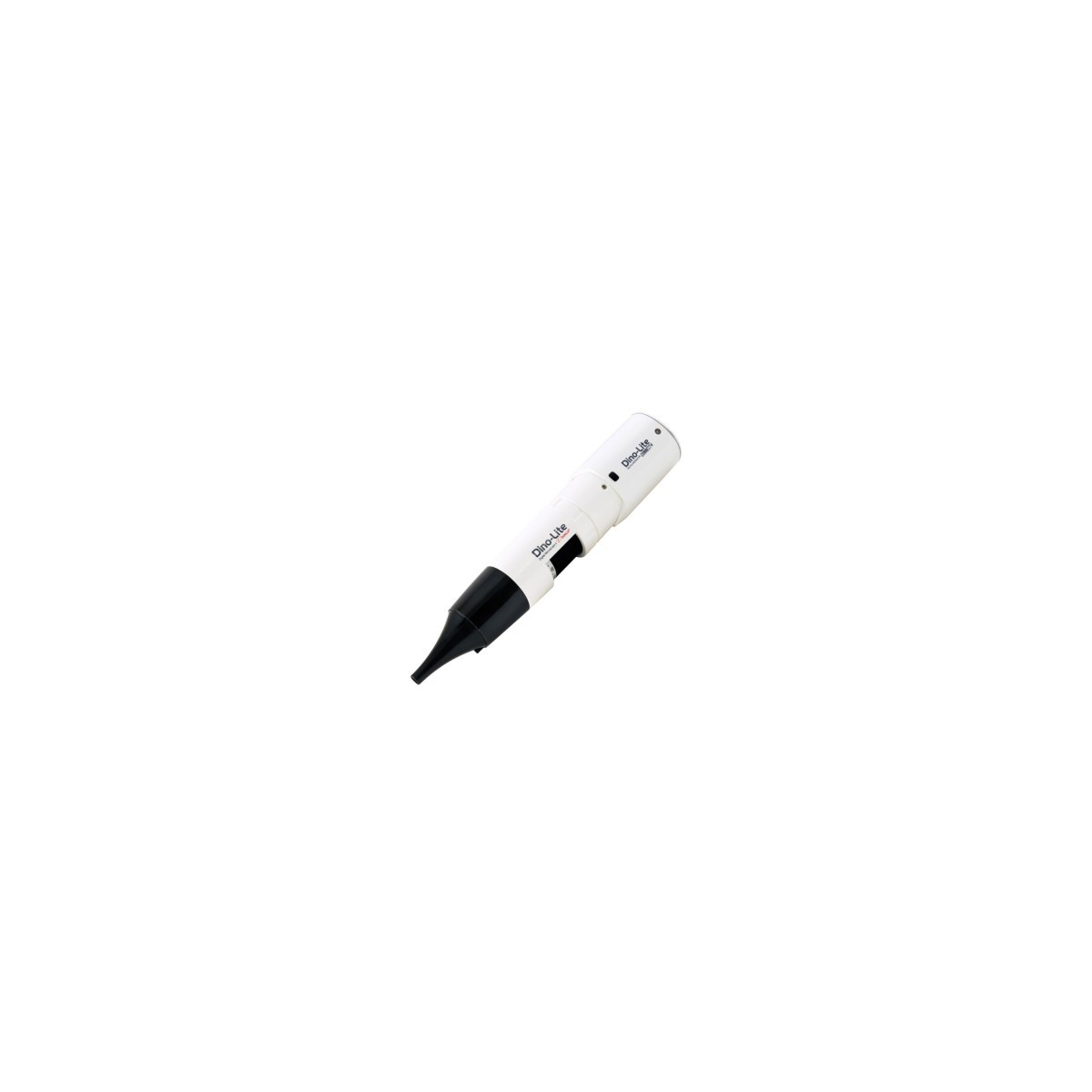

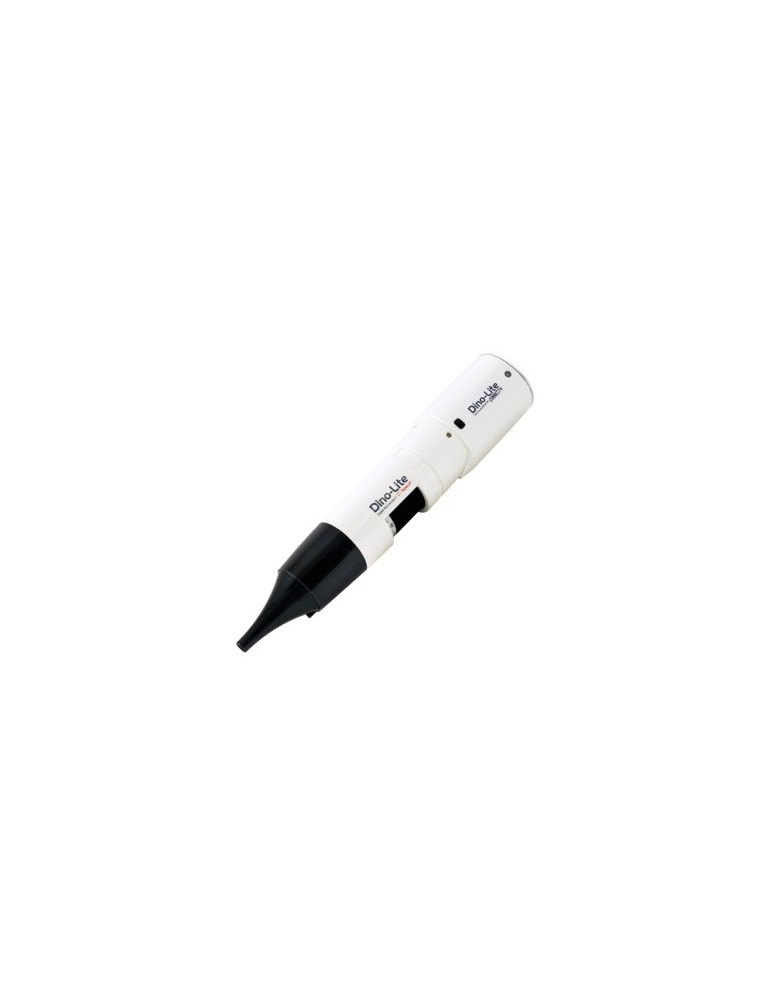

Dino-Lite EarScope Basic Wireless - Otoscopio digitale Wi-Fi

The Dino-Lite EarScope Basic Wireless MEDLW3E is a Wi-Fi digital otoscope designed for simple and immediate observation of the ear canal and external ear.

The device offers 640 x 480 VGA resolution and 20-30x adjustable magnification, making it suitable for basic video-otoscopy and digital documentation applications.

The Wi-Fi connection allows you to use the device without being tied directly to the computer, while still keeping the USB 2.0 interface available for wired use.

Main features

• Resolution: 640 x 480 pixels
• Magnification: 20-30x
• Built-in Wi-Fi
• USB 2.0 interface
• 4 white LEDs
• LEDs that can be activated/deactivated
• IR cut filter >650 nm
• Glass lenses with anti-reflective treatment
• Maximum frame rate: 30 fps
• Removable hood for greater hygienic convenience

Speculum included

• 10 disposable 3 mm specula
• 10 disposable 4 mm specula
• 10 disposable 5 mm specula

Software compatibility

• DinoCapture 2.0 for Windows - Wired and Wireless
• DinoXcope for macOS - via cable
• DinoConnect - wireless use
• Imaging standards: DirectShow and UVC

Technical specifications

• Product Code: MEDLW3E
• Sensor: CMOS
• Resolution: VGA 640 x 480
• Dimensions: 10.5 x 3.2 cm
• Weight: 95 g
• Cable length: 1.8 m
• Device class: Medical Device Class 1

The Dino-Lite EarScope Basic Wireless MEDLW3E is a practical solution for those who want to introduce digital video otoscopy with a compact, lightweight device that is easy to integrate into normal diagnostic work.
