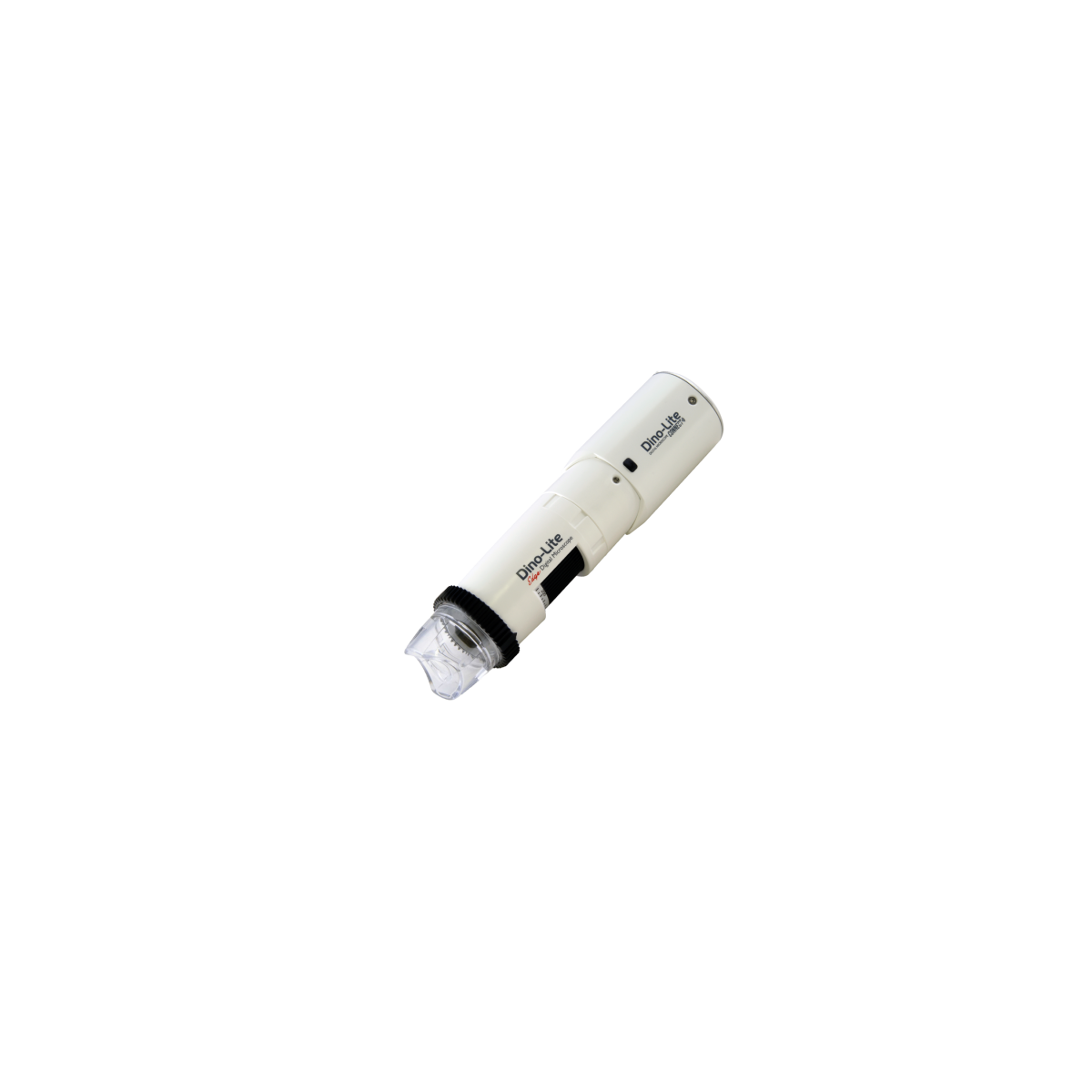

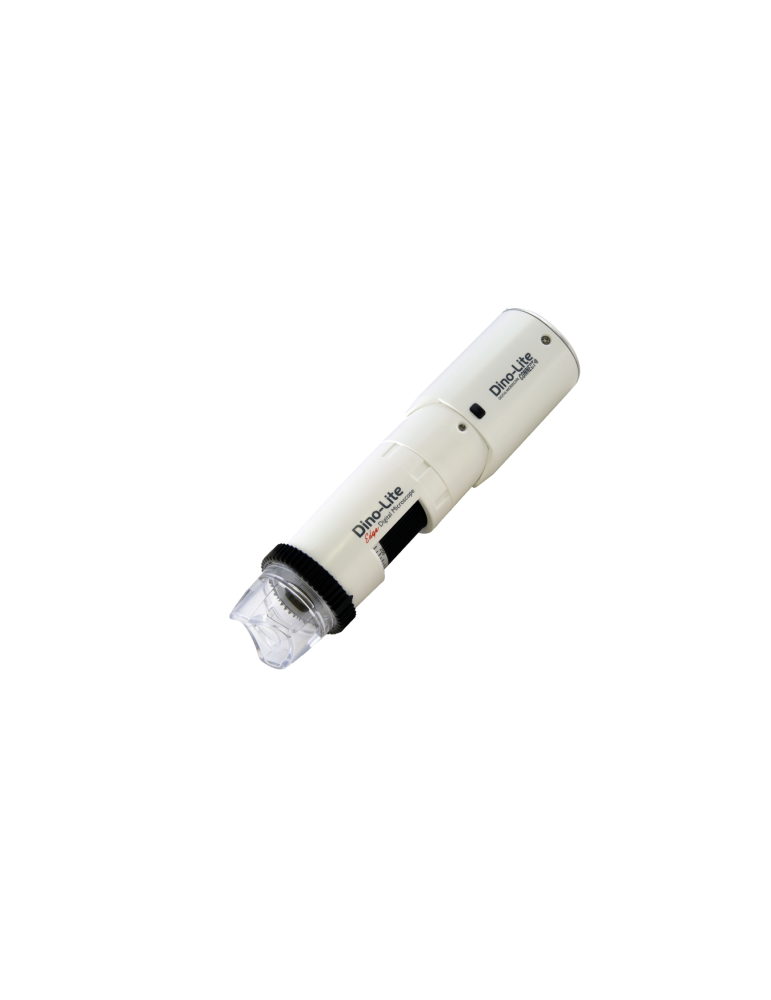

Dino-Lite CapillaryScope 500 Pro Wireless Pro - Capillaroscopio digitale Wi-Fi 500x

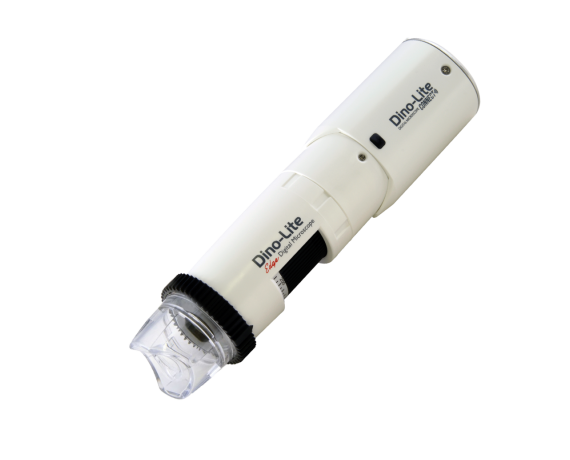

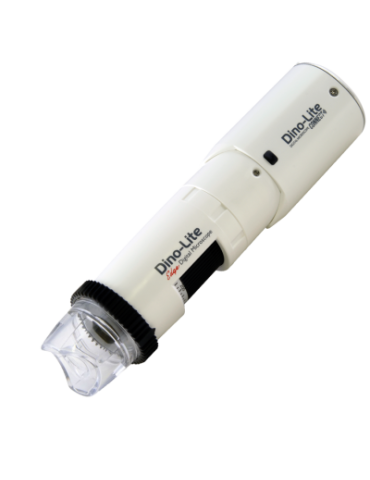

Dino-Lite CapillaryScope 500 Pro Wireless MEDLW4N5 Pro is a professional Wi-Fi digital capillaroscope with magnification up to 500x , designed for detailed observation of the microcirculation and periungual capillaries .
100% secure payment methods
Cards - PayPal - Bank Transfer - ApplePay
Are you a Doctor or a Professional?
Sign in here to obtain reserved price list
Fast shipping throughout Europe
We use only premium couriers

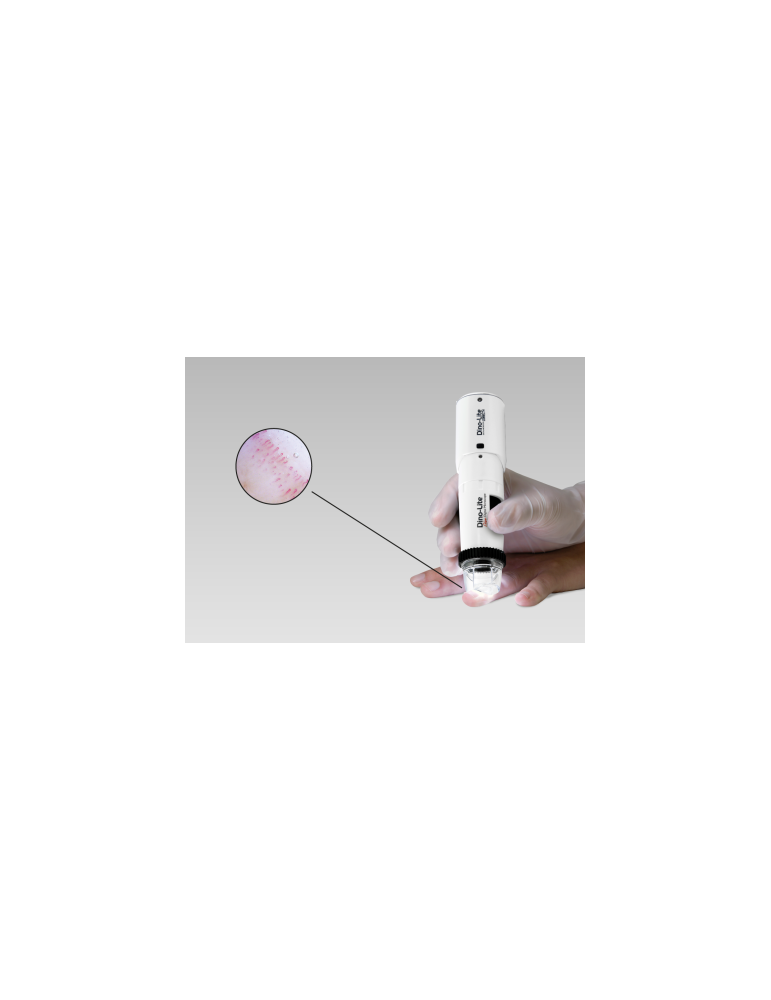

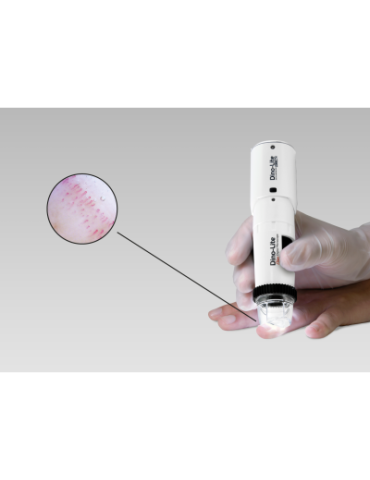

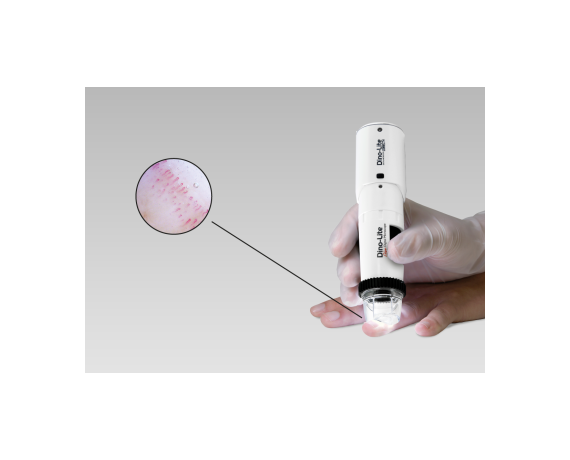

The Dino-Lite CapillaryScope 500 Pro Wireless MEDLW4N5 Pro is a high-magnification digital capillaroscope designed for precise observation of the microcirculation and blood vessels in the periungual area.

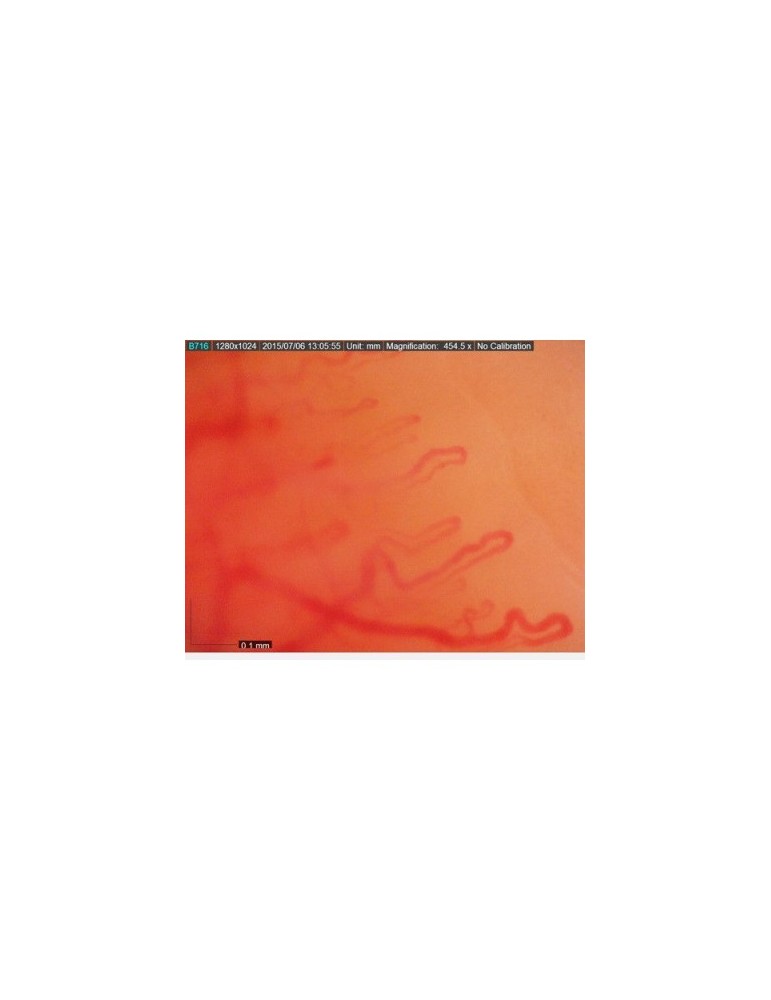

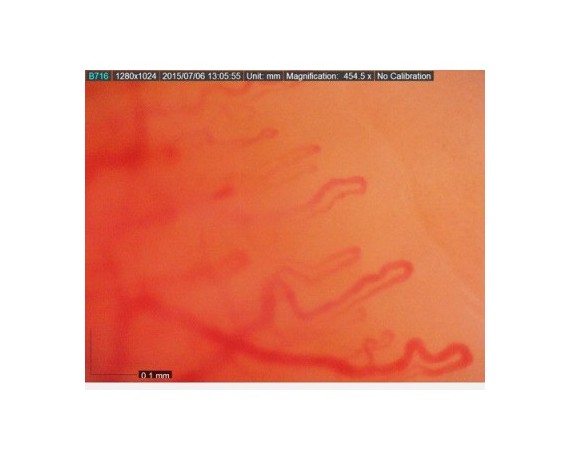

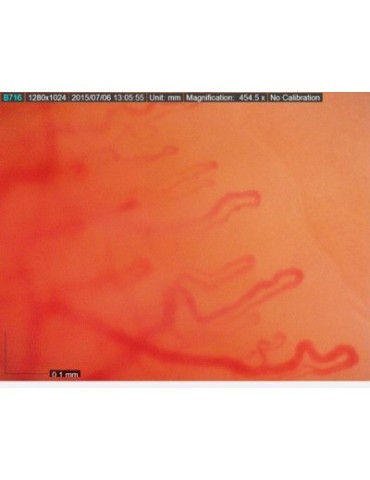

Thanks to the 500x magnification, it allows you to acquire very detailed images of the capillaries, making it particularly suitable for nail capillaroscopy applications, microcirculation analysis and clinical documentation .
The integrated linear polarizer helps reduce surface reflections, especially when using contact oil or water on the nail edge, improving the readability of vascular structures.
Wi-Fi connectivity allows for more flexible use and easy image management through compatible Dino-Lite software, without sacrificing the traditional USB 2.0 connection.
Main features
- Magnification: 500x
- Resolution: 1.3 MP - 1280 x 1024
- Wi-Fi connection
- USB 2.0 interface
- 8 white LEDs
- Integrated linear polarizer
- IR cut filter >650 nm
- Glass lenses with anti-reflective treatment
- Maximum frame rate: 30 fps
- Automatic Magnification Reading - AMR
- Microtouch sensor
- Zoom lock
Ideal for high-detail capillaroscopy
The 500 Pro model is particularly suitable when very detailed visualization of capillary structures is required. The high magnification allows for precise observation of capillary morphology and the acquisition of useful images for comparison and follow-up.
Software compatibility
- DinoCapture 2.0 for Windows - Wired and Wireless
- DinoXcope for macOS - via cable
- DinoConnect - wireless use
- Imaging standards: DirectShow and UVC
Technical specifications
- Product Code: MEDLW4N5 Pro
- Sensor: CMOS
- Resolution: 1.3 MP
- Magnification: 500x
- Lighting: 8 white LEDs
- Polarizer: yes, linear
- Dimensions: 10.5 x 3.2 cm
- Weight: 105 g
- Cable length: 1.8 m
- Device class: Medical Device Class 1
Package Contents
- CapillaryScope MEDLW4N5 Pro
- Carrying case
- Software
- User manual
- CapillaryScope N3C-N Cap
MEDLW4N5
Data sheet
- CE Certification:
- Yes
