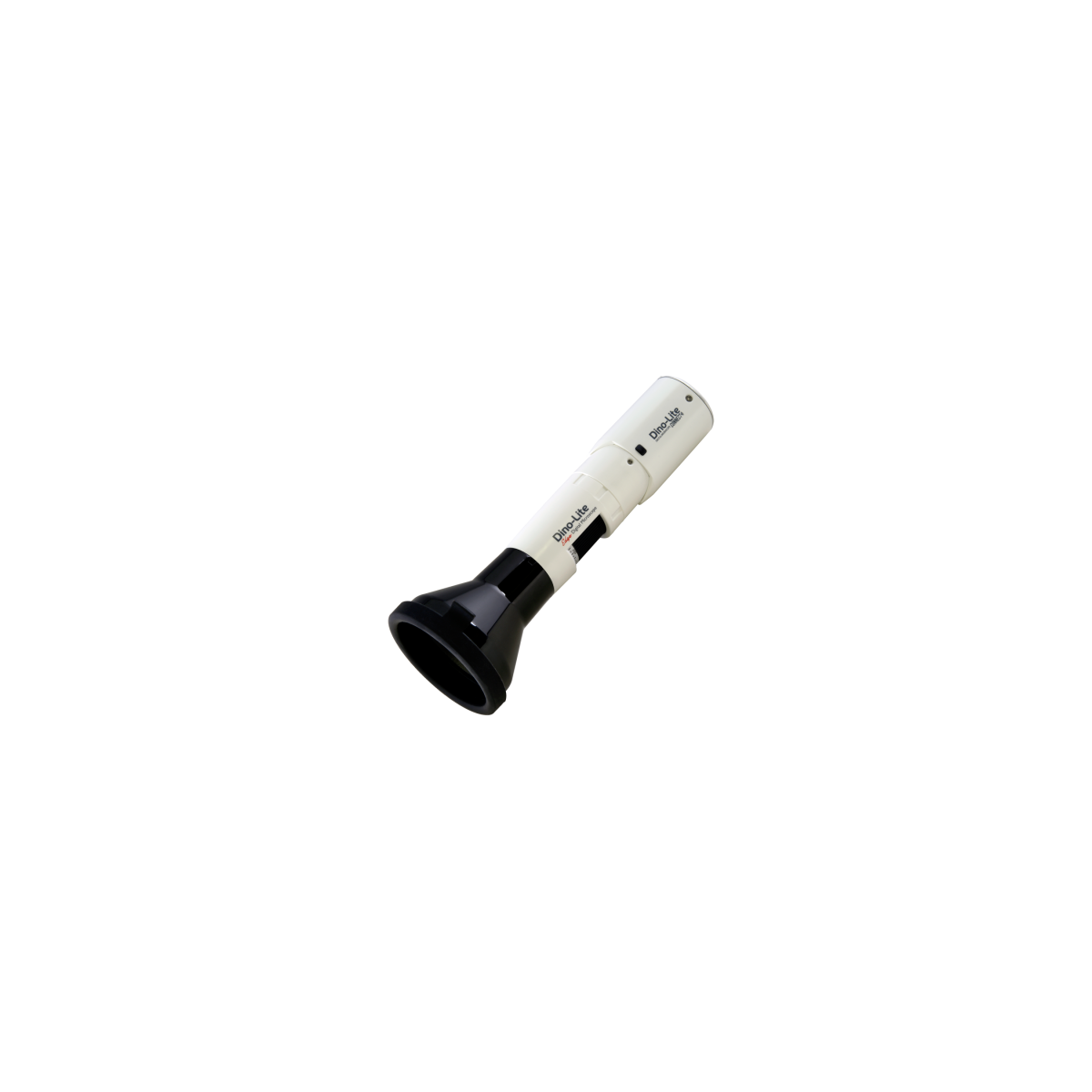

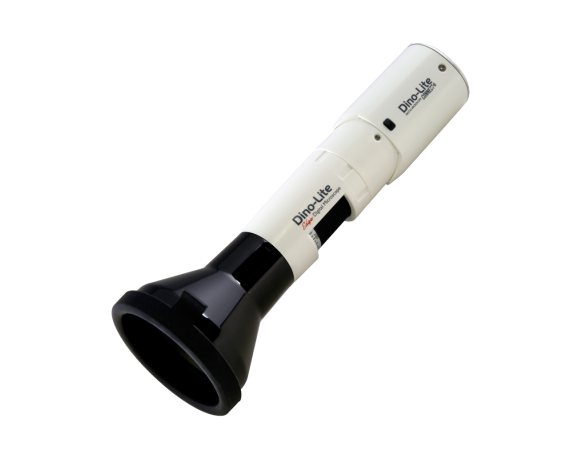

Dino-Lite IriScope Wireless - 1.3 MP Wi-Fi Digital Iridoscope

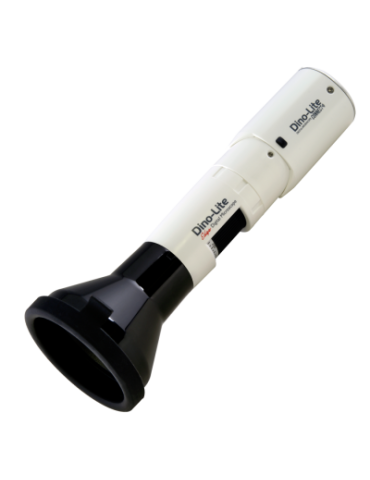

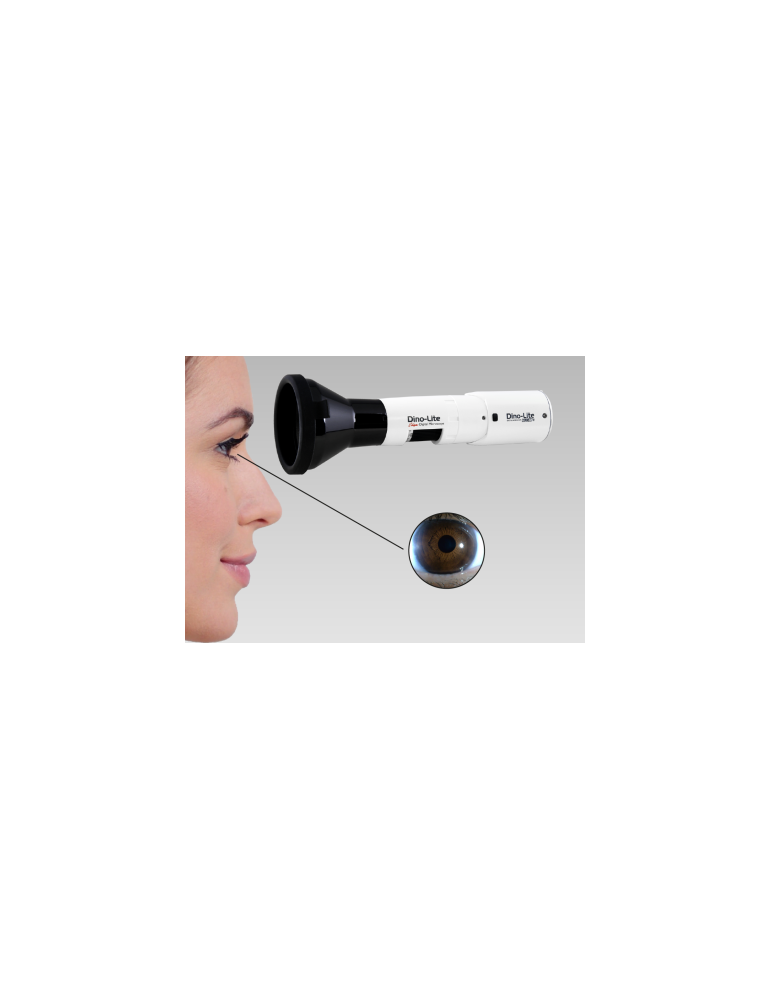

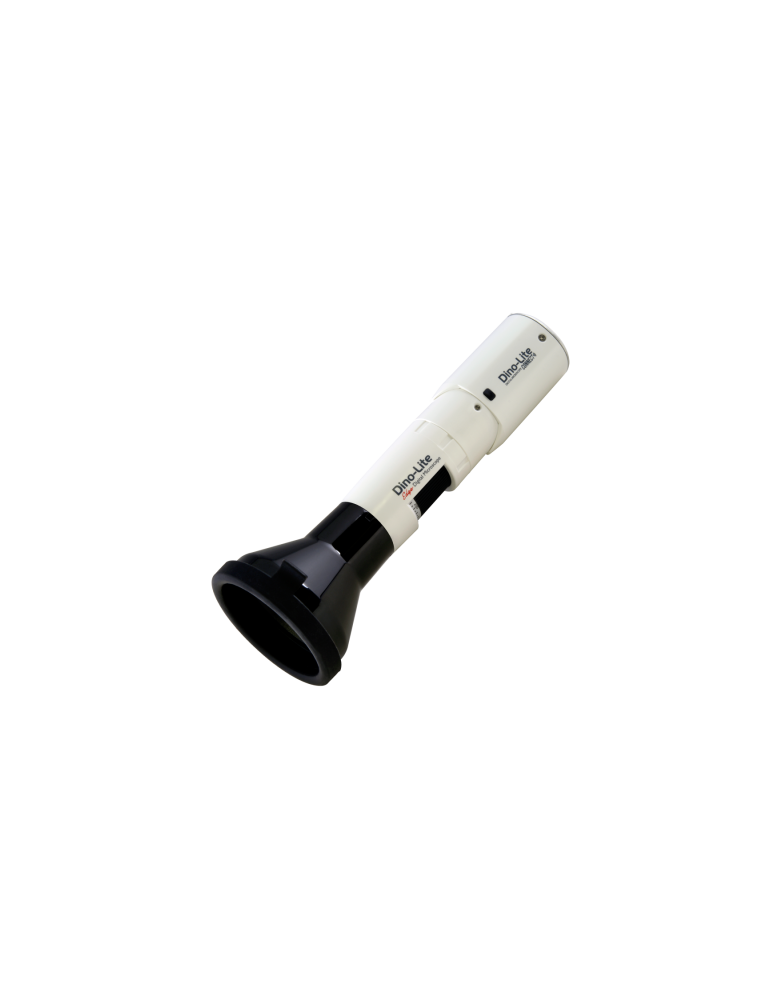

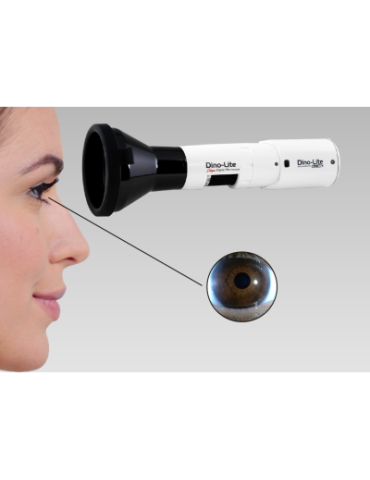

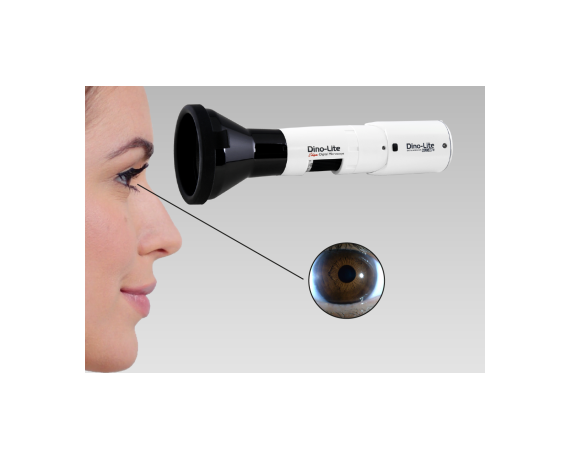

The Dino-Lite IriScope Wireless MEDLW4R is a professional Wi-Fi digital iridoscope designed to capture detailed iris images easily, quickly and comfortably.

The system uses a special lateral illumination with 2 white LEDs + 2 yellow LEDs , designed to reduce reflections on the surface of the eye and limit the discomfort caused by excessively bright light. The yellow LEDs are particularly useful for obtaining better images of darker irises .

The 1.3 Megapixel CMOS sensor can capture images up to 1280 x 1024 pixels, while the adjustable 10-20x magnification allows you to clearly view the structure of the iris.

Thanks to Wi-Fi connectivity, the device can be used wirelessly with compatible Dino-Lite software, offering greater operational freedom than a wired-only system.

Main features

• 1.3MP CMOS sensor
• Maximum resolution: 1280 x 1024 pixels
• Magnification: 10-20x
• Wi-Fi connection
• USB 2.0 interface
• Lighting: 2 white LEDs + 2 yellow LEDs
• LEDs that can be activated/deactivated
• IR cut filter >650 nm
• Glass lenses with anti-reflective treatment
• Maximum frame rate: 30 fps
• Microtouch sensor
• Zoom lock

Iris-optimized lighting

The white and yellow LED configuration is one of the MEDLW4R's main strengths. The edge lighting helps reduce glare on the eye, while the yellow light improves readability for darker irises.

Software compatibility

• DinoCapture 2.0 for Windows - Wired and Wireless
• DinoXcope for macOS - via cable
• DinoConnect - wireless use
• Imaging standards: DirectShow and UVC

Technical specifications

• Product Code: MEDLW4R
• Sensor: CMOS
• Resolution: 1.3 MP - 1280 x 1024
• Magnification: 10-20x
• Lighting: 2 white LEDs + 2 yellow LEDs
• Wi-Fi: yes
• Interface: USB 2.0
• Dimensions: 10.5 x 3.2 cm
• Weight: 95 g
• Cable length: 1.8 m
• Device class: Medical Device Class 1

Package Contents

• Dino-Lite IriScope MEDLW4R
• Carrying case
• Software
• User manual

The Dino-Lite IriScope Wireless MEDLW4R is classified as a Class I Medical Device according to the European Regulation MDR 2017/745.
