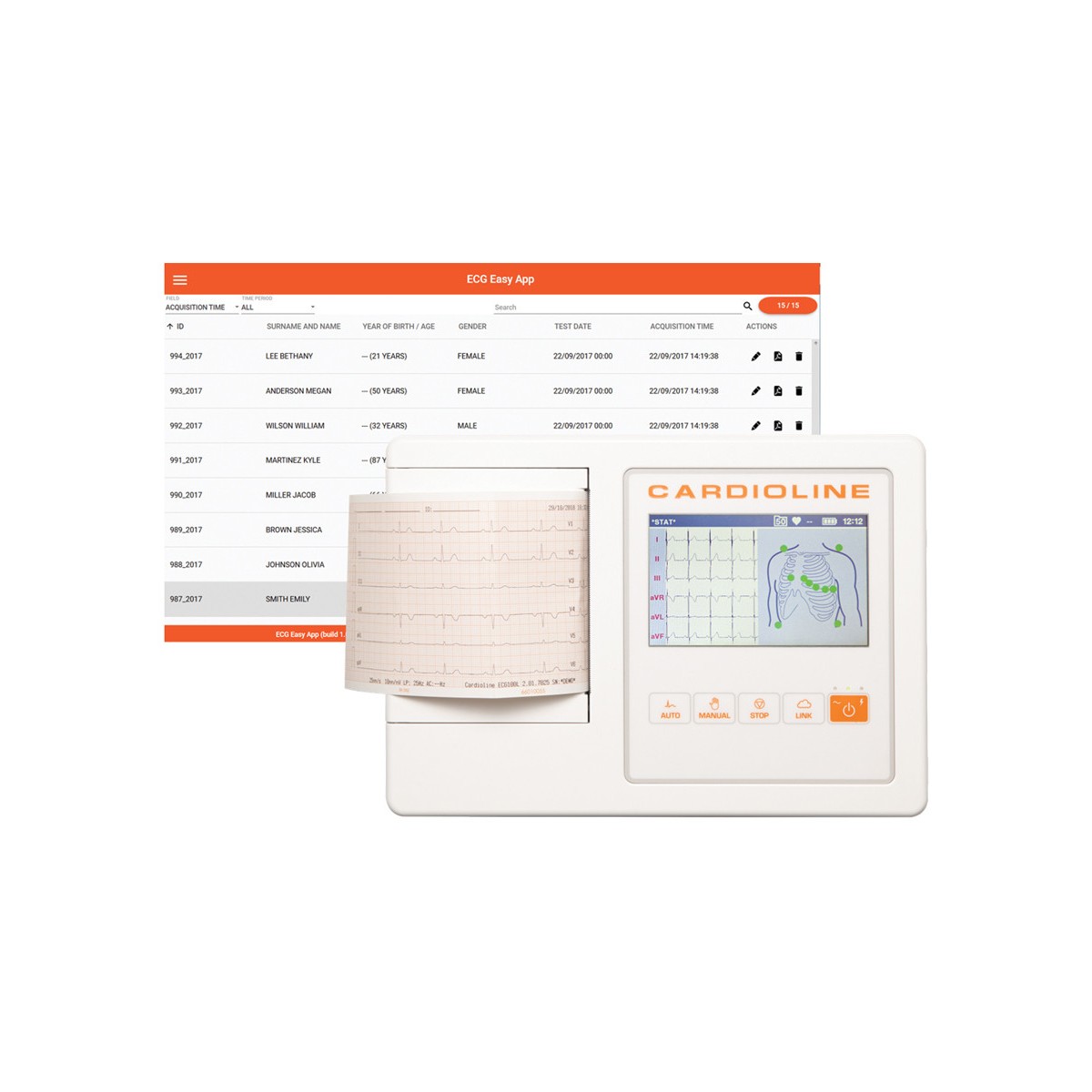

ECG Cardioline 100L FULL - Glasgow and EasyApp with color touch screen

Cardioline ECG100L Full electrocardiograph, with Glasgow algorithm and EasyApp function. Color touch screen.

Cardioline ECGs are designed to quickly and easily acquire a 12-lead resting ECG in a medical office. Particular attention has been paid to ease of use, with a bright 5" color touch screen and dedicated keys for rapid operation.

The user is guided step by step through ECG acquisition, from electrode placement to quality control, acquisition, printing and storage. With the simple press of a button, ECGs can be acquired in Auto, Manual, Stat or Rhythm modes. The new Rhythm ECG function allows rhythm analysis of 3 minutes of ECG, including heart rate trend and variability.

ECG files can be stored in the device or exported via USB connection to a PC or memory stick. Supports most print formats. Switchable multilingual internal software, 16 languages GB, FR, IT, ES, PT, DE, RO, RU, CZ, HR, BR, HU, NL, TR, RS, PL.

Glasgow Algorithm for Pediatric and Adult Interpretation

The algorithm can diagnose any abnormality that is usually recognized by ECG: myocardial infarction, including AMI, ventricular hypertrophy, ST-T segment abnormalities, and common rhythm abnormalities. The program also detects disorders such as conduction delay and QT interval prolongation.

ECG EasyApp to manage patients' ECGs

With this App, ECG acquisitions can be received in SCP format on PC (via USB) and printed. Patient data and automatic interpretations provided by ECG, including test results, are editable. The operator can also customize the rhythm strip pattern with specific controls (speed, gain, filter, etc.).

ECG Acquisition

• ECG channels: 12 leads (I, II, III, aVR-LF, V1-6)
• Patient cable: Standard 15D, 10 wires
• CMRR: >100dB
• Input impedance: 100 MOhm
• Input stage sampling rate: 32000 samples/second/channel
• ECG Resolution: 5µV/LSB; 500 s/s
• Dynamic range: ±325 mV
• Bandwidth: Performance equivalent to 0.05-150 Hz
• Pacemaker recognition: Hardware recognition coupled with digital convolution filter
• Filters: Digital linear phase diagnostic high-pass filter (per 60601-2-25 2nd ed.). Digital adaptive filter for AC interference 50/60 Hz. Digital low-pass filter at 25/40 Hz, for display and printing only.
• Defibrillation protection: AAMI/IEC standard
• Front-end performance: ANSI/AAMI IEC 60601-2-25:2011
• Acquisition Mode: Automatic (12 leads), Manual (3/6 leads), Stat (12 leads), Rhythm (1/3 leads)
• Configuration: Standard or Cabrera
• Derivation fault detection: Independent on all branches
• Heart rate measurement: 30-300 bpm
• ECG measurements: All leads, averaged, corrected; HR; mean RR; PR interval; QRS duration; QT and QTc interval, with Hodges, Bazzet and Fridericia formula, max R[V5] or [V6] and S[V1]; Sokolow-Lyon index; P, R, T axes
• ECG Interpretation: Glasgow Analysis Program for Adult, Pediatric, STEMI Patients
• ECG Memory: 50 ECGs
• Export format: SCP-PDF
• PC-ECG “Easy App”: ECG management application for PC

Screen

• Type: 5" backlit color TFT LCD with capacitive touch panel
• Resolution: 800 x 480
• Displayed data: 3/6/12 leads in real time

Printer

• Thermal head: 108mm
• Resolution: 8 dots/mm

Physical and electrical characteristics

• Dimensions/weight: 270x190x60 mm - 1.48 Kg
• Power supply: 100-240V, 50/60Hz
• Power supply protection degree: IP20
• Battery type: NiMH
• Battery life: more than 500 ECGs, more than 6 hours
• Charging time: 4 hours up to 85% of total capacity

Regulations and safety

• MDD 93/42/EEC Class IIa
• IEC 60601-1-2 (electromagnetic compatibility): Group 1 - Class B
• IEC 60601-1 (Electrical safety)
• Protection against electric shock: IP (internal power supply), Class I (on external AC/DC power supply)
• Water protection: IXP 0

Standard equipment

• Patient cable
• 2 rolls of paper
• Drums
• Power cord
• 4mm Snap Connector Adapter (Pack of 10)
• Glasgow Interpretation
• Disposable tab electrodes (pack of 100)
• Manual on CD (GB, FR, IT, ES, PT, DE, NL, CZ, HR, HU, PL, RO, RU)
