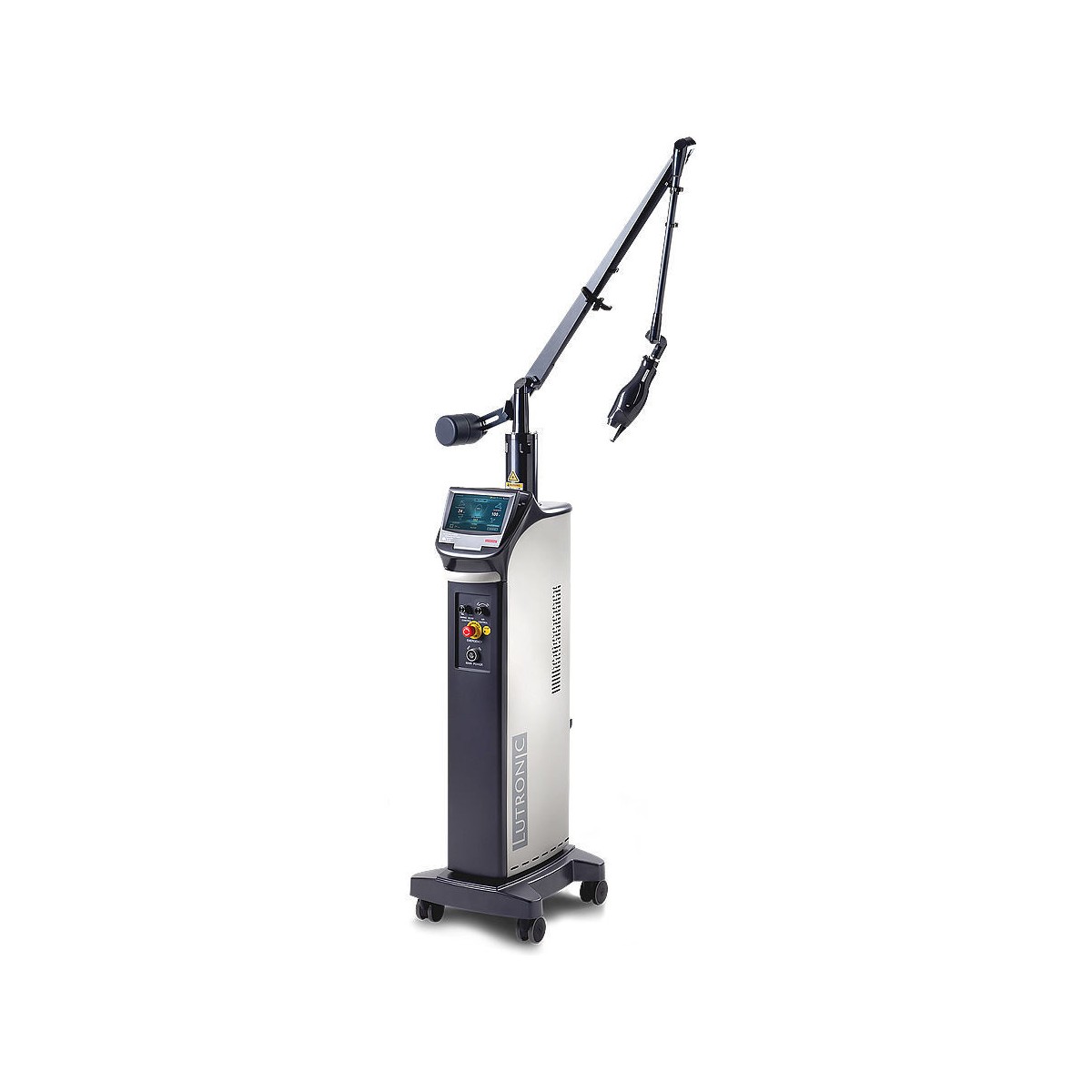

Lutronic eCO2 Fractional CO2 Laser - 30W Co2 Fractional Laser Lutronic

Lutronic eCO2 Fractional CO2 Laser - 30W

eCO2 Lutronic , a platform for fractional CO2 laser resurfacing, combines dual mode technology (static - dynamic) with the deep ablation properties of a CO2 laser system .

Quantity

help_outlineAsk about product
Lutronic eCO2 Fractional CO2 Laser - 30W

Lutronic eCO2 Fractional CO2 Laser - 30W



100% secure payments
  Are you a Doctor or a Professional?

Contact us for reserved price list

  Fast shipping throughout Europe

We use only premium couriers

  Are you in UK or outside Euro Zone?

You will not pay Italian 22% VAT

The CO2 laser beam heats and vaporizes the skin tissue, instantly removing the superficial layers of the skin. Each micro-fractionated spot creates a thermal zone. The intact cells around the treated area aid the healing process. This process induces cell regeneration. The contraction is immediate while the structural improvement of the skin begins to be seen approximately one week after the procedure.

Fibroblasts respond naturally by producing collagen, elastin and glycosaminoglycans, which begin the process of skin restructuring. eCO2 combines the 10,600 nm laser beam with 3 different types of tips, with the possibility of having a penetration depth from 50 microns to 2.4 mm.

Using a patented proprietary algorithm called Controlled Chaos Technology (CCT), eCO2 distributes each laser beam as far as possible from the previous one over the treated area, in order to maximize heat dissipation. This fractional method translates into the optimization of the thermal relaxation time of the tissue, resulting in a faster and less painful healing process.


SCANNER HANDPIECE

120 µm spot
  • Scars
  • Deep Wrinkles
  • Tightening

300 µm spot
  • Dilated pores
  • Skin Textures
  • Luminous Skin

1000 µm spot
  • Skin Toning
  • Face texture
  • Skin brightness

SURGICAL HANDPIECES

  • Zoom handpiece from 0.2 to 10mm
  • Micro F50 handpiece (optional 500 µm spot)
  • Micro F100 handpiece (optional 1000 µm spot)

Data sheet

Device Type
Radio Frequency CO2 Laser
Emitted Wavelenght
10600 nm
Transmittion Medium
Articulated Arm with Scanner and Surgical Handpiece
Pulse Mode
Static or Dynamic with Scanner - Continuous, Pulsed and Superpulsed with Surgical Handpiece
Pulse Energy
240 mJ Max
Pulse Density
400 spots/cm2 Max.
Spot Size
120-1000 um with Scanner , 0.2-1.0 mm Surgical
Treated Area
Max 14 x 14 mm
Pulse Duration
4us - 5ms
Output power
30 W Continuous Mode
Repetition Rate
1-700 Hz Manipolo Chirurgico , 10-200 Hz Manipolo Scanner
Aiming Beam
Red 615nm Adjustable
User Interface
LCD Display Touchscreen
Cooling
Air Cooling
Power Specifications
AC 220-230V 50Hz 600VA
CE Certification:
Yes
Height
187 cm
Depth
45 cm
Width
36 cm
Weight
48 Kg
